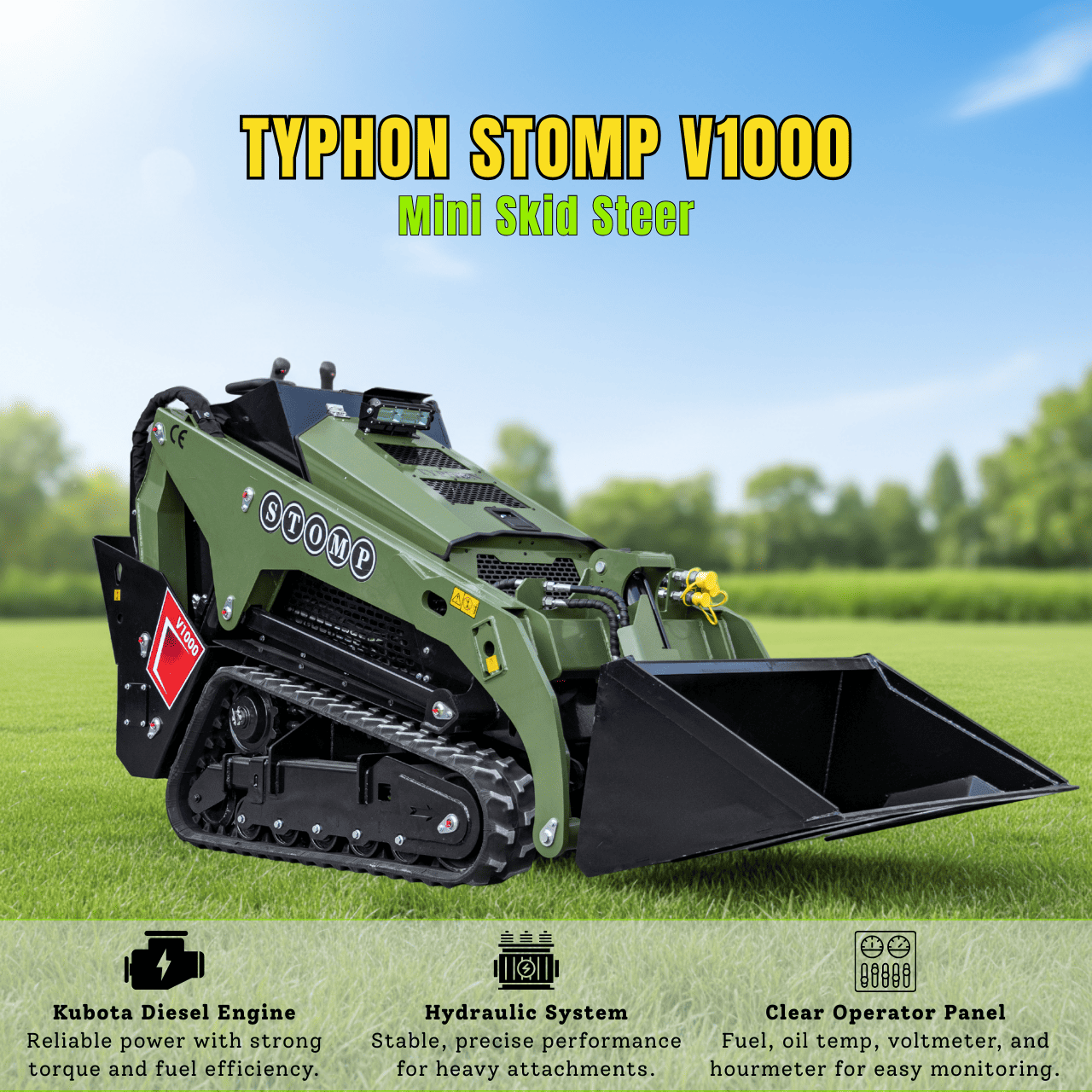

TYPHON Stomp V1000 24HP Kubota D1105 Water Cooled Diesel Skid Steer Pilot Control

Equipment Overview and Capabilities

This independent overview explains the main capabilities, practical uses, and important specifications of TYPHON Stomp V1000 24HP Kubota D1105 Water Cooled Diesel Skid Steer Pilot Control for buyers comparing equipment for active jobsites.

The TYPHON STOMP V1000 is a compact yet powerful 1.5-Ton skid steer loader designed for confined locations such as gardens, small building sites, farms, and urban projects. Its compact footprint gives operators a way to perform it to operate effortlessly in areas where larger machines cannot, while its versatile attachment capability enables digging, lifting, drilling, leveling, breaking, and site cleanup with ease.Intuitive controls and a comfortable operator area make operation simple and efficient. Bright LED jobsite tasks lights ensure excellent visibility in all weather and lighting conditions, while quick attachment changes keep productivity high.

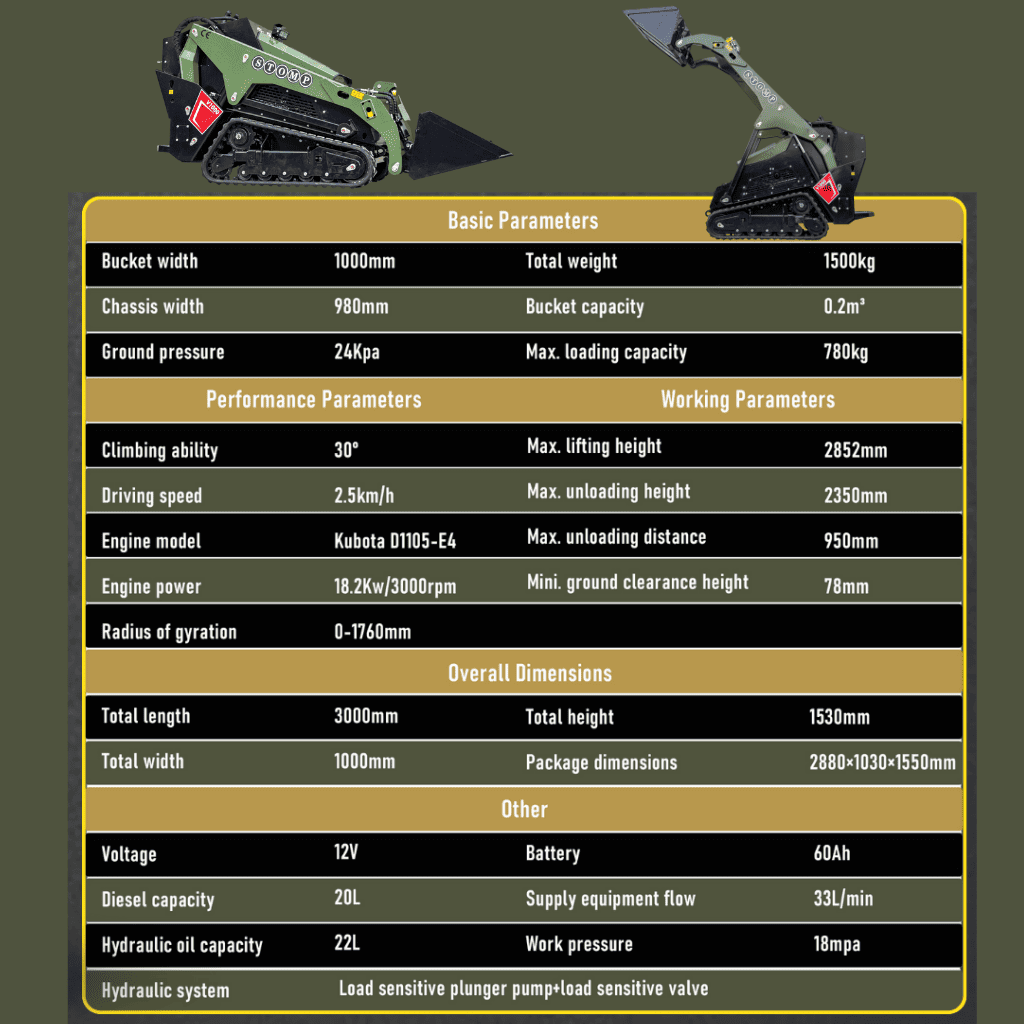

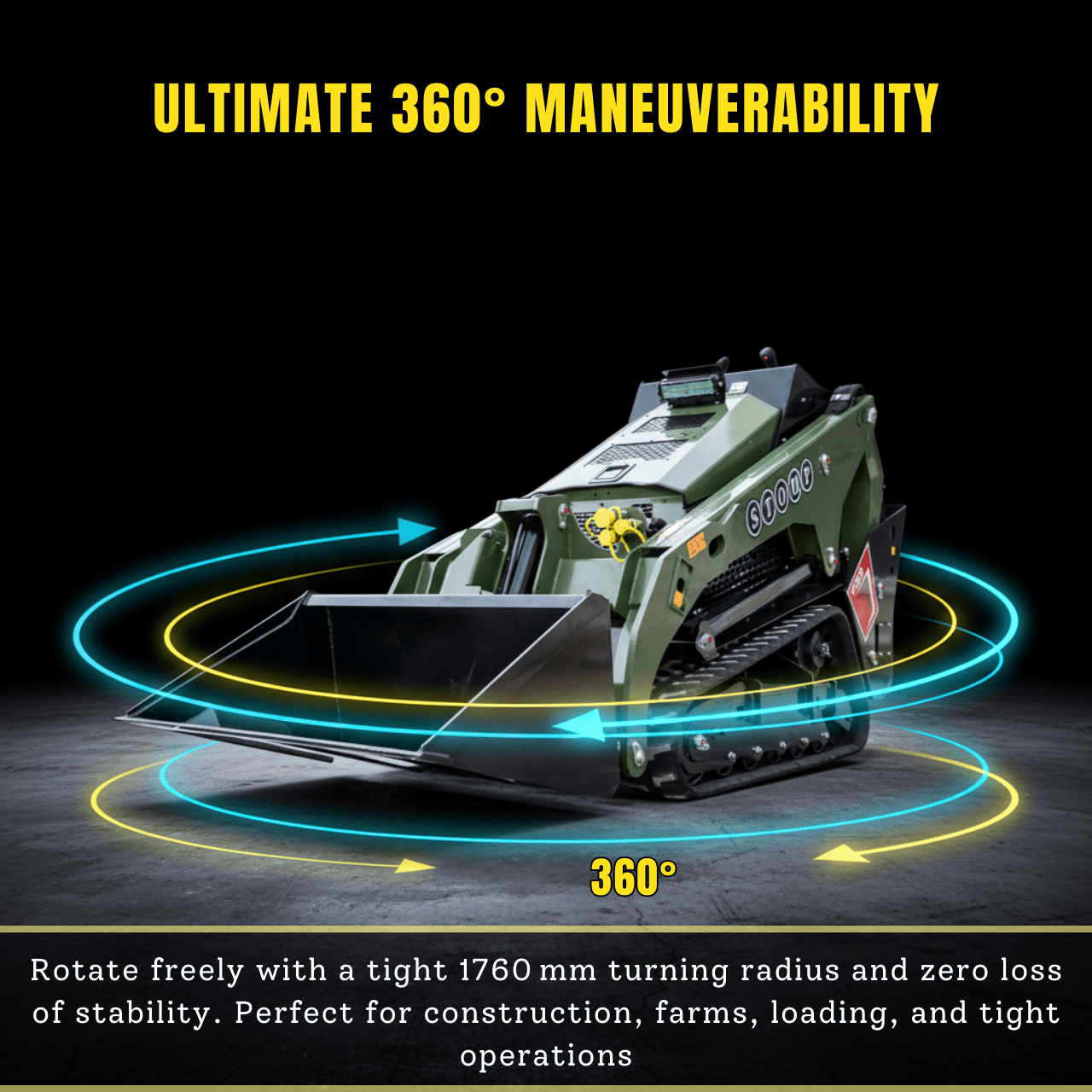

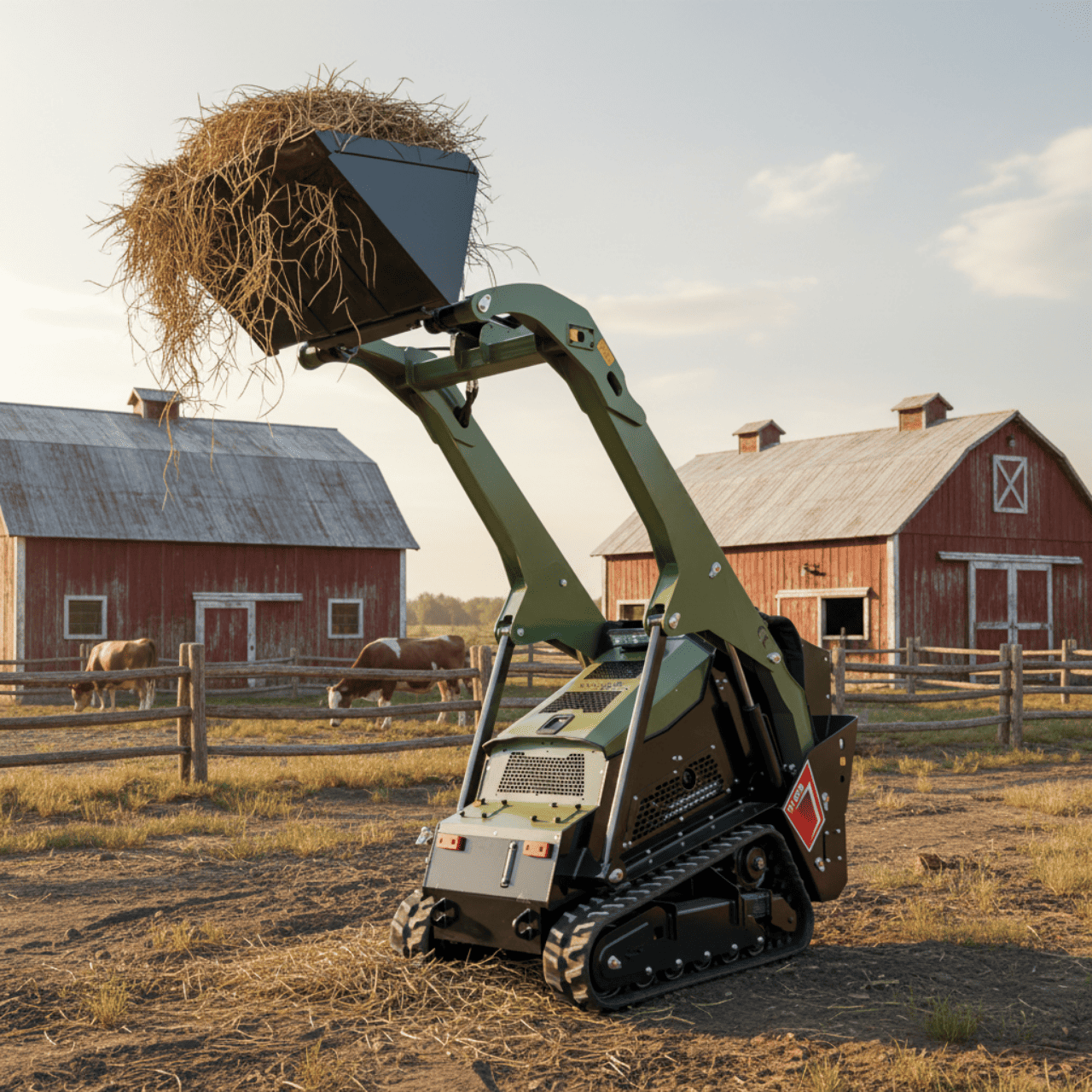

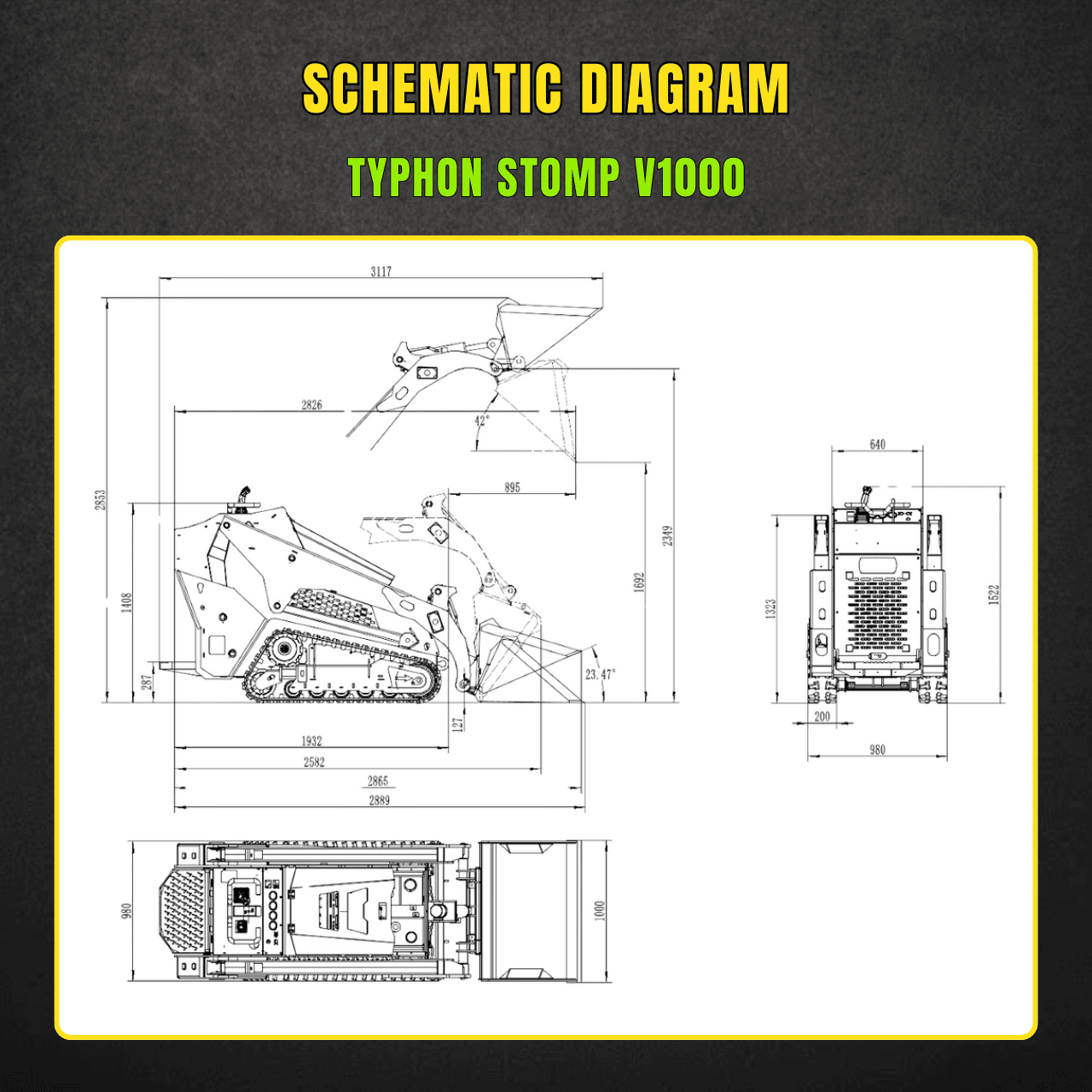

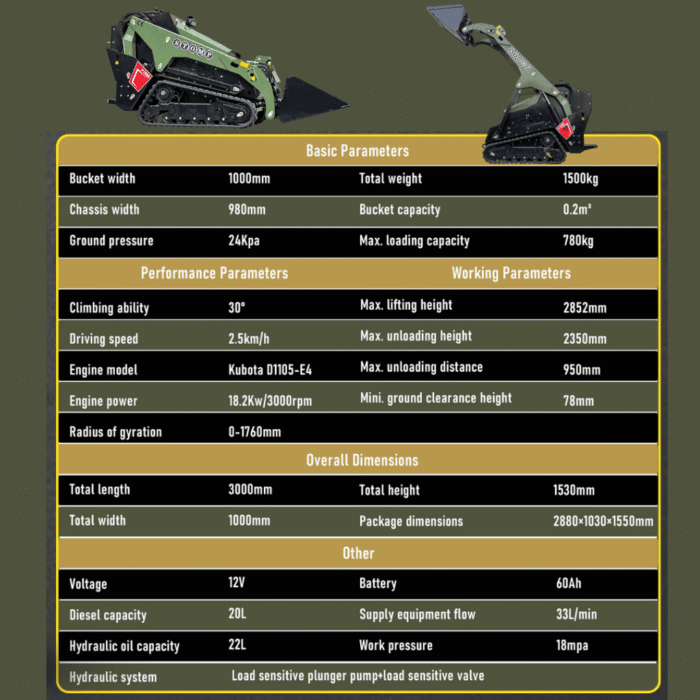

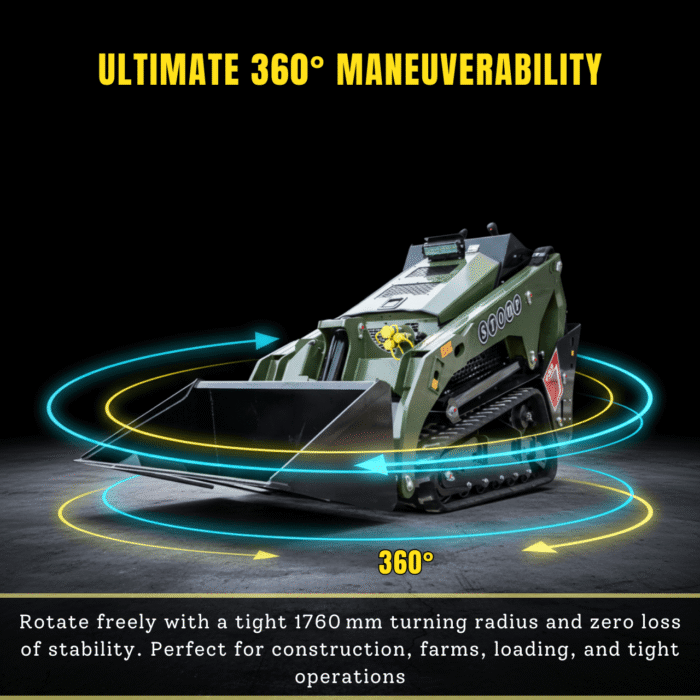

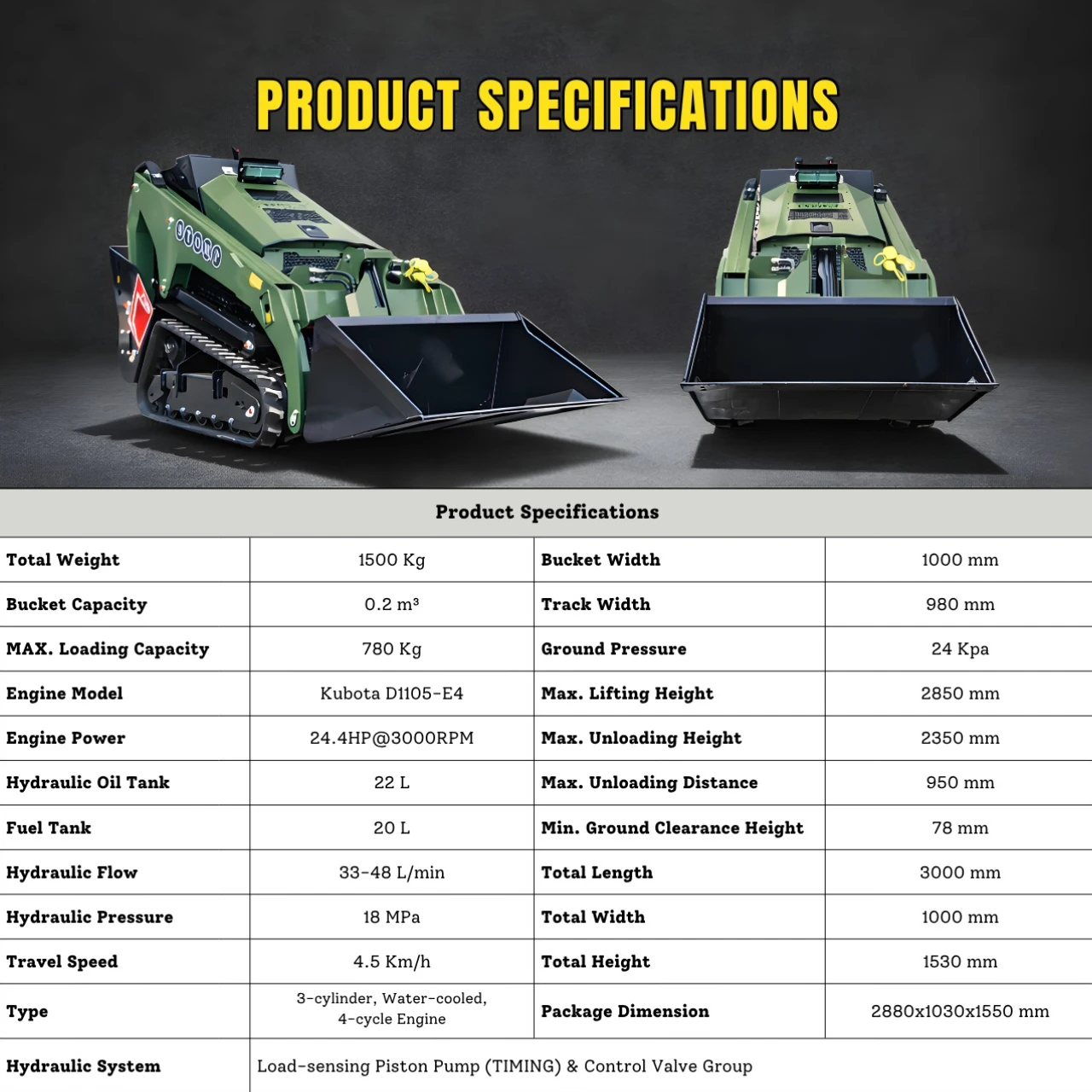

The STOMP V1000 is well suited for landscaping, residential construction, agricultural jobsite tasks, material handling, and warehouse applications.TYPHON STOMP V1000 Skid Steer – Key Features:1. Built for Narrow SpacesThe TYPHON Stomp V1000 is compact yet powerful, making it a practical choice for tight access areas such as gardens, orchards, greenhouses, tunnels, and small construction sites. With a 980 mm chassis width, 1000 mm bucket width, 3000 mm overall length, and 1530 mm height, it can easily access locations where larger machines are restricted.A 0–1760 mm turning radius combined with 360° mobility gives operators a way to perform smooth maneuvering in confined spaces.

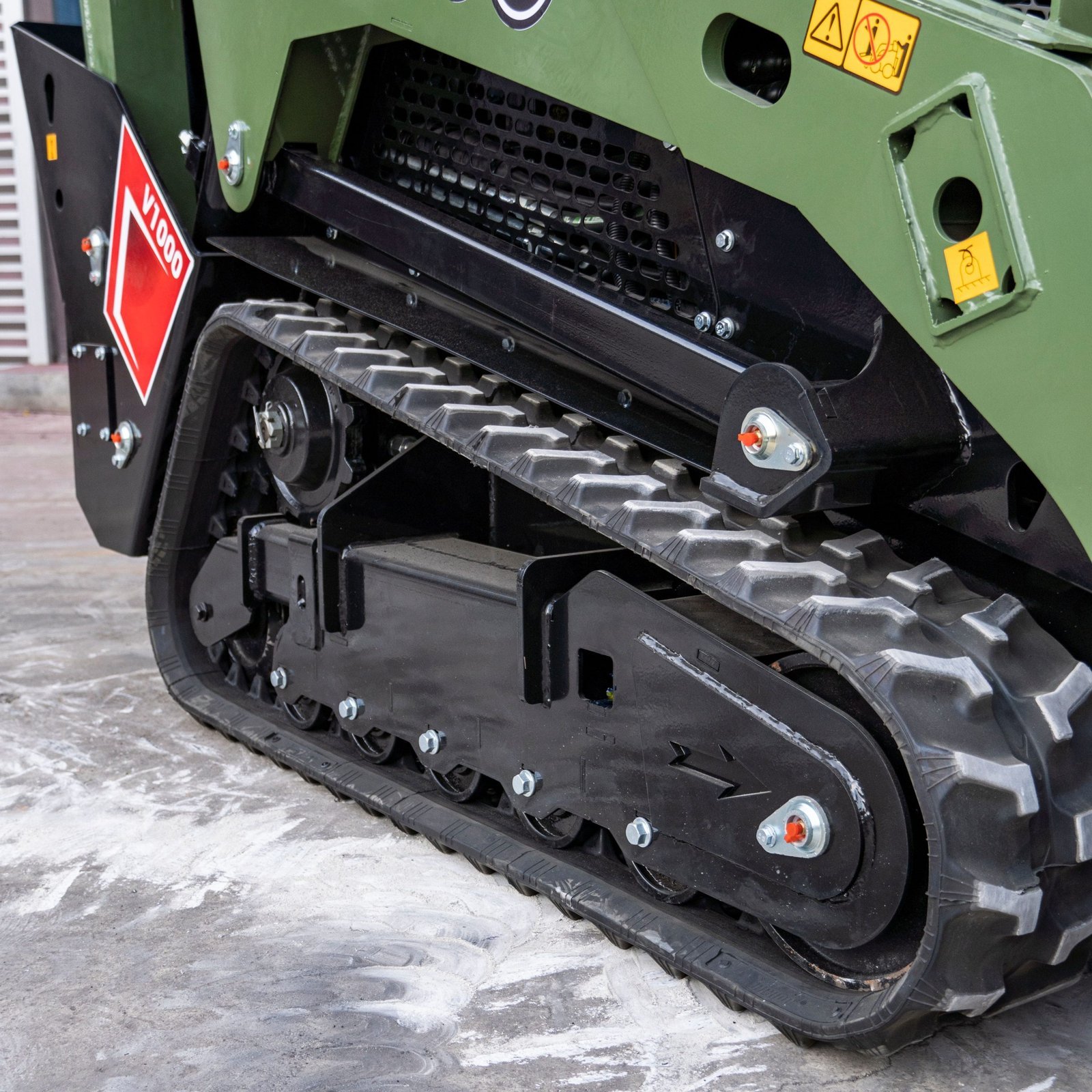

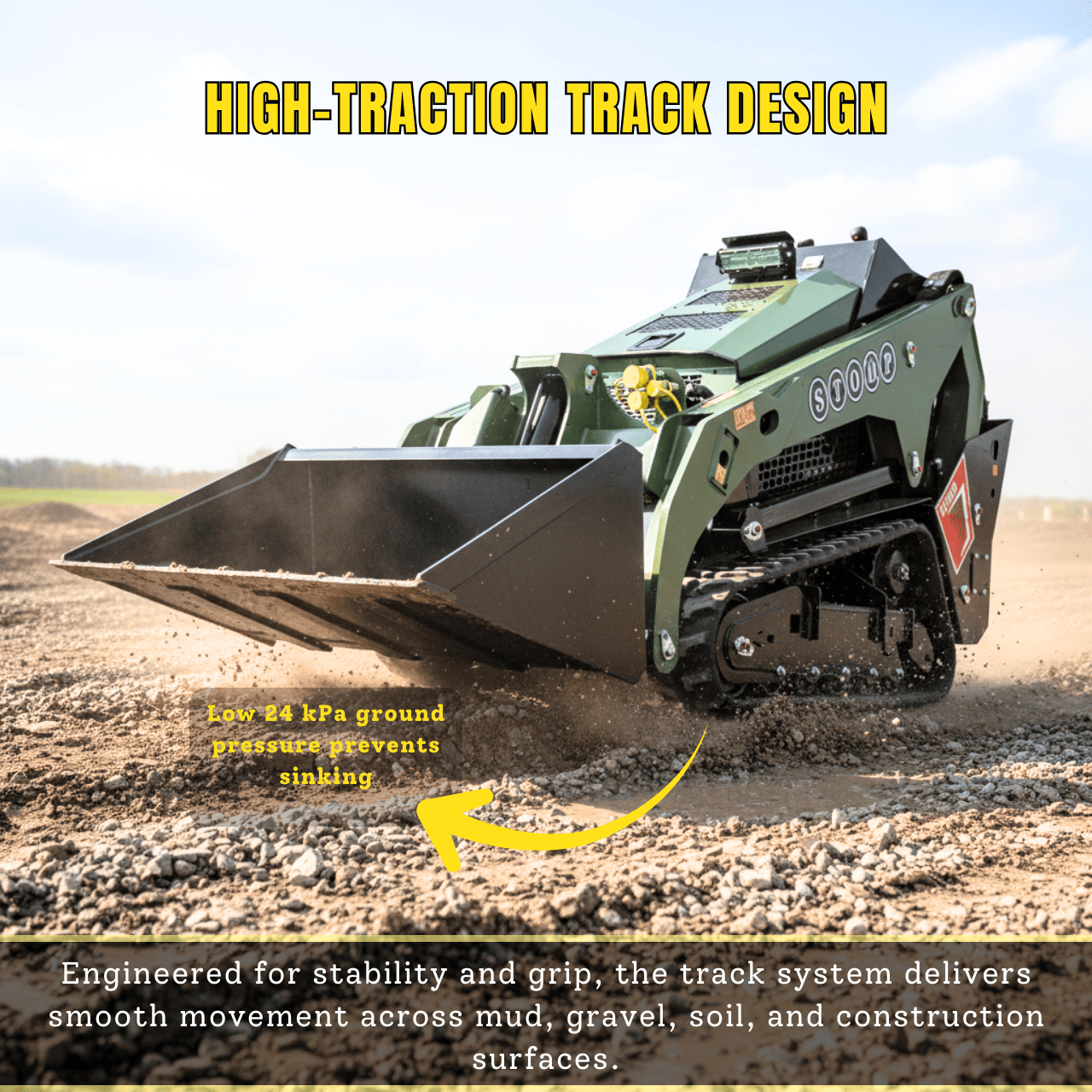

The low 24 kPa ground pressure, 78 mm ground clearance, and 30° climbing ability provide stable operation on soft soil, farmland, muddy construction sites, slopes, and uneven terrain, helping prevent sinking or surface damage. The maximum lifting height of 2852 mm supports efficient material handling and loading tasks.2. Get Jobs DoneSTOMP V1000 has been developed to handle real-world jobsite tasksloads with ease.

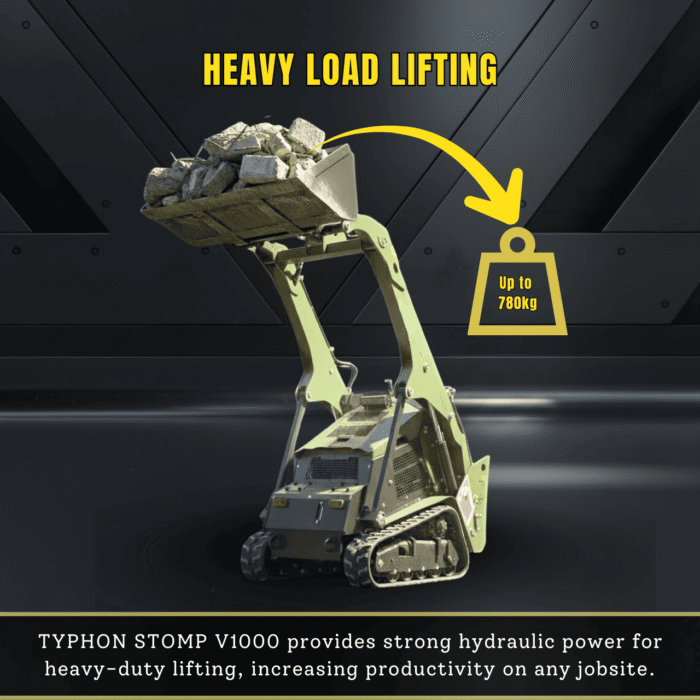

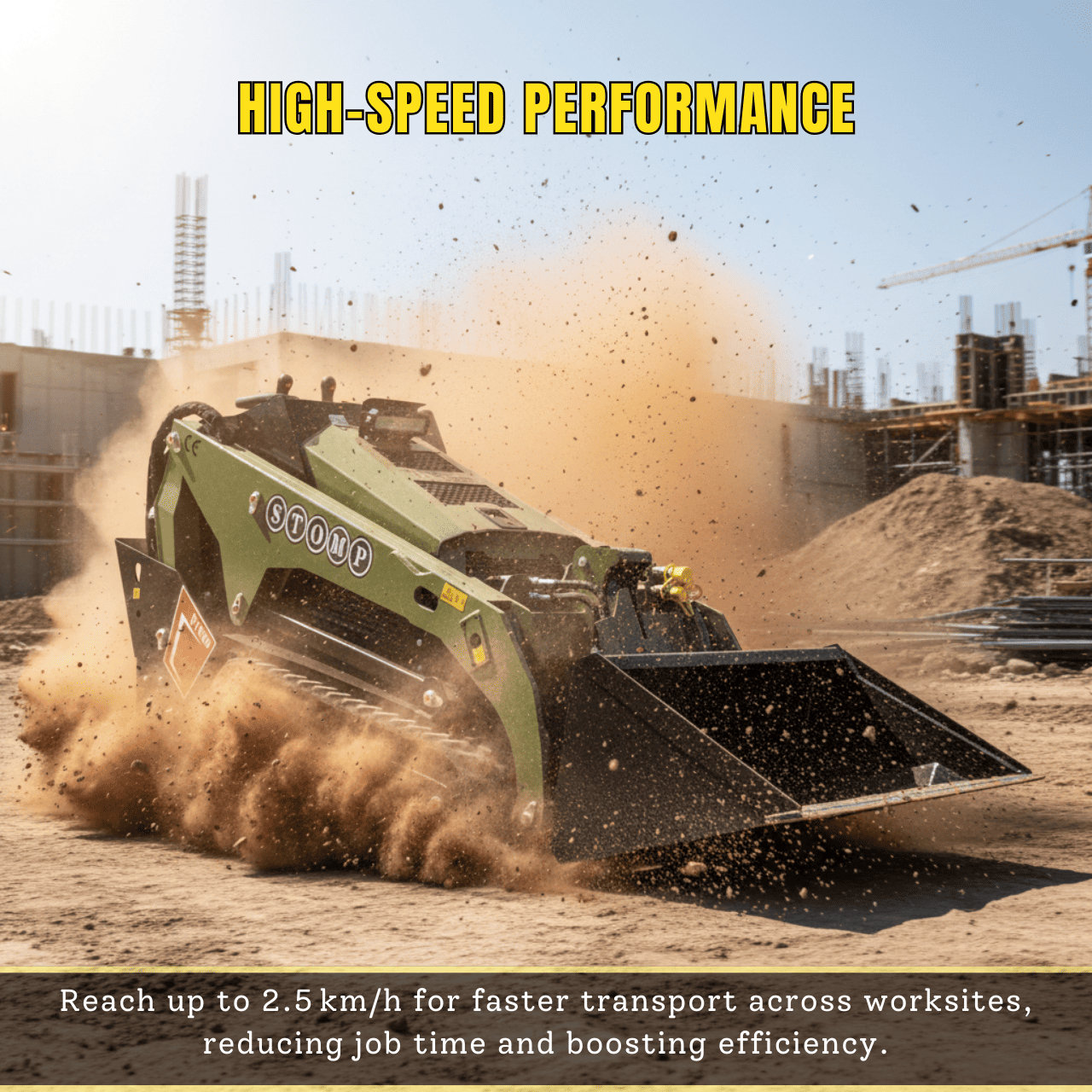

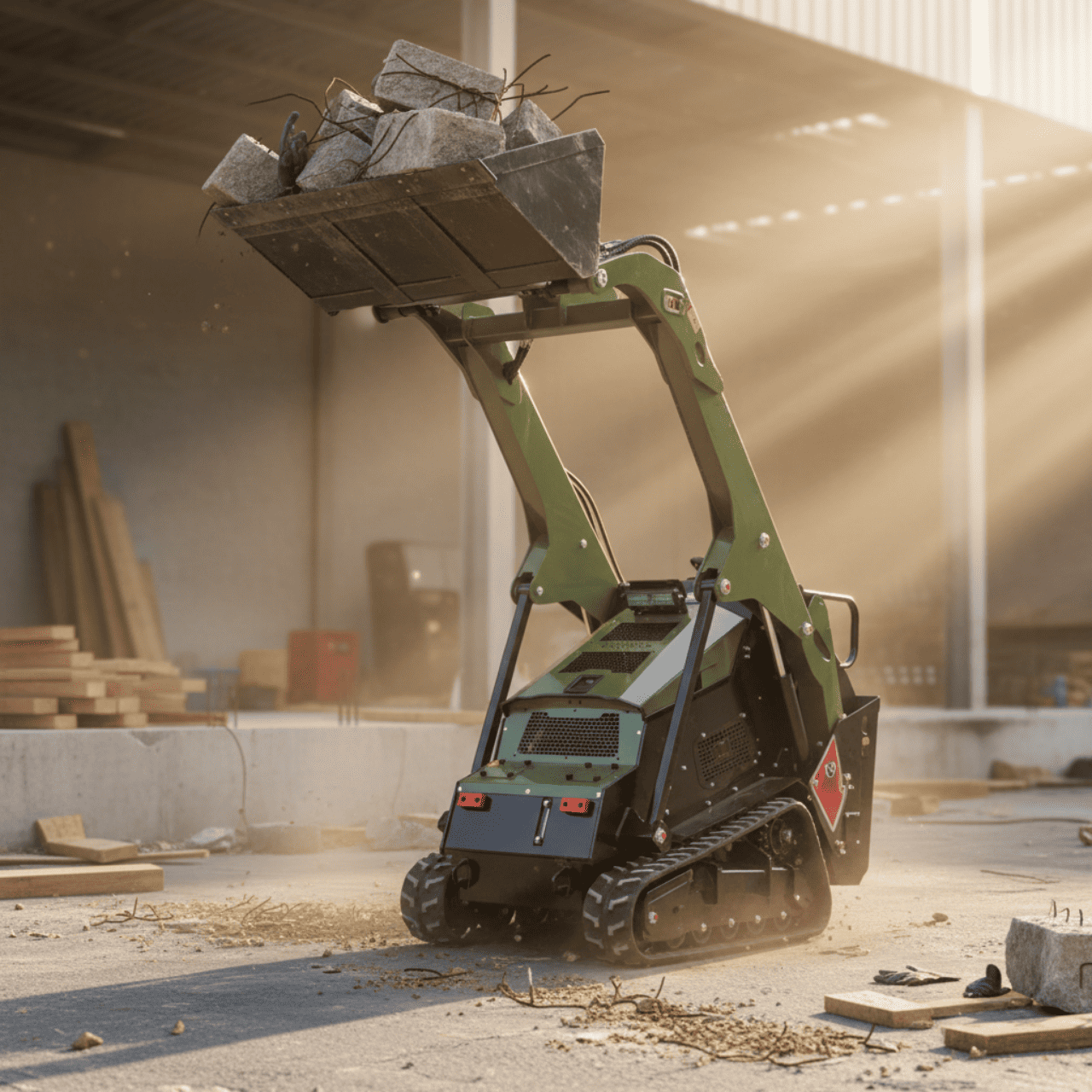

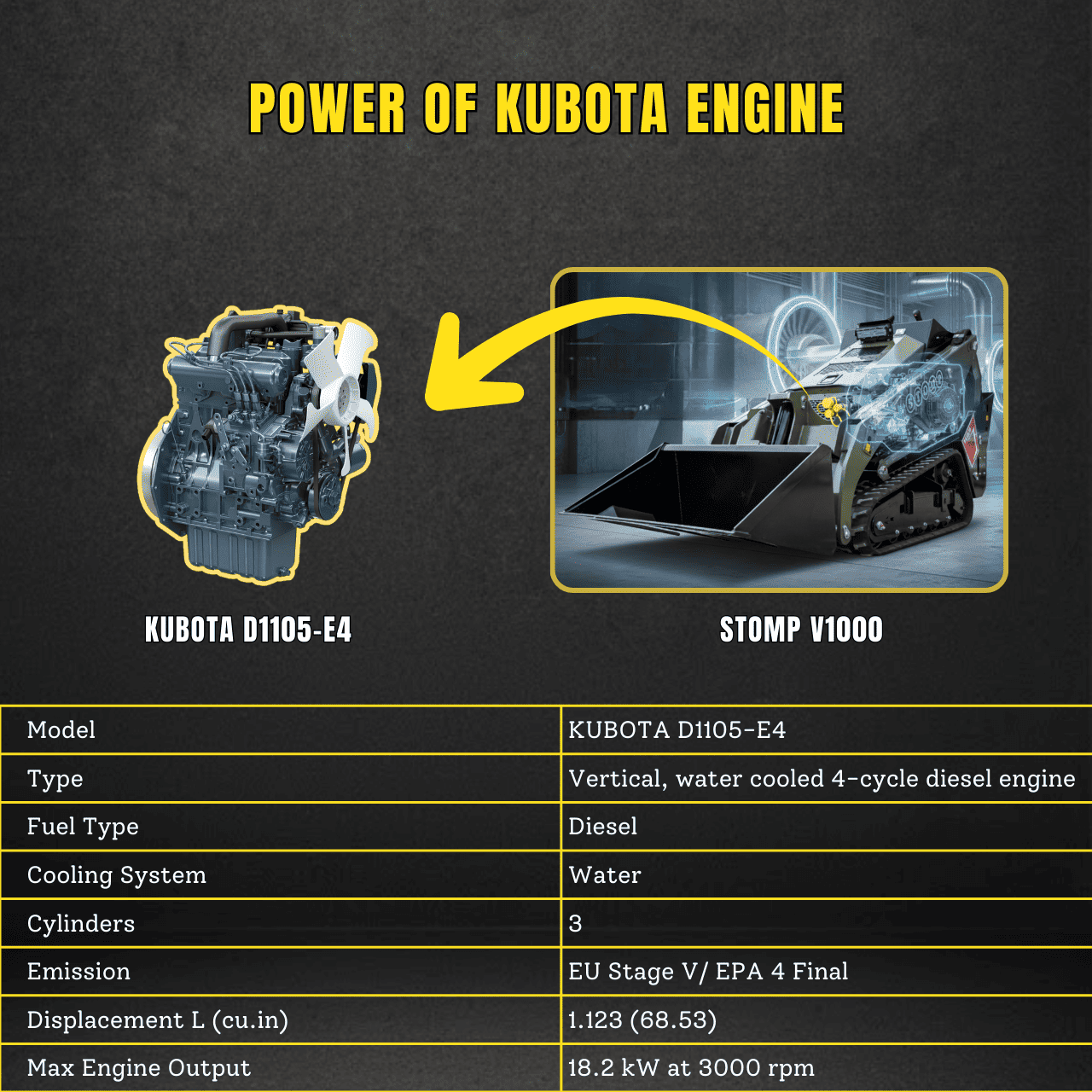

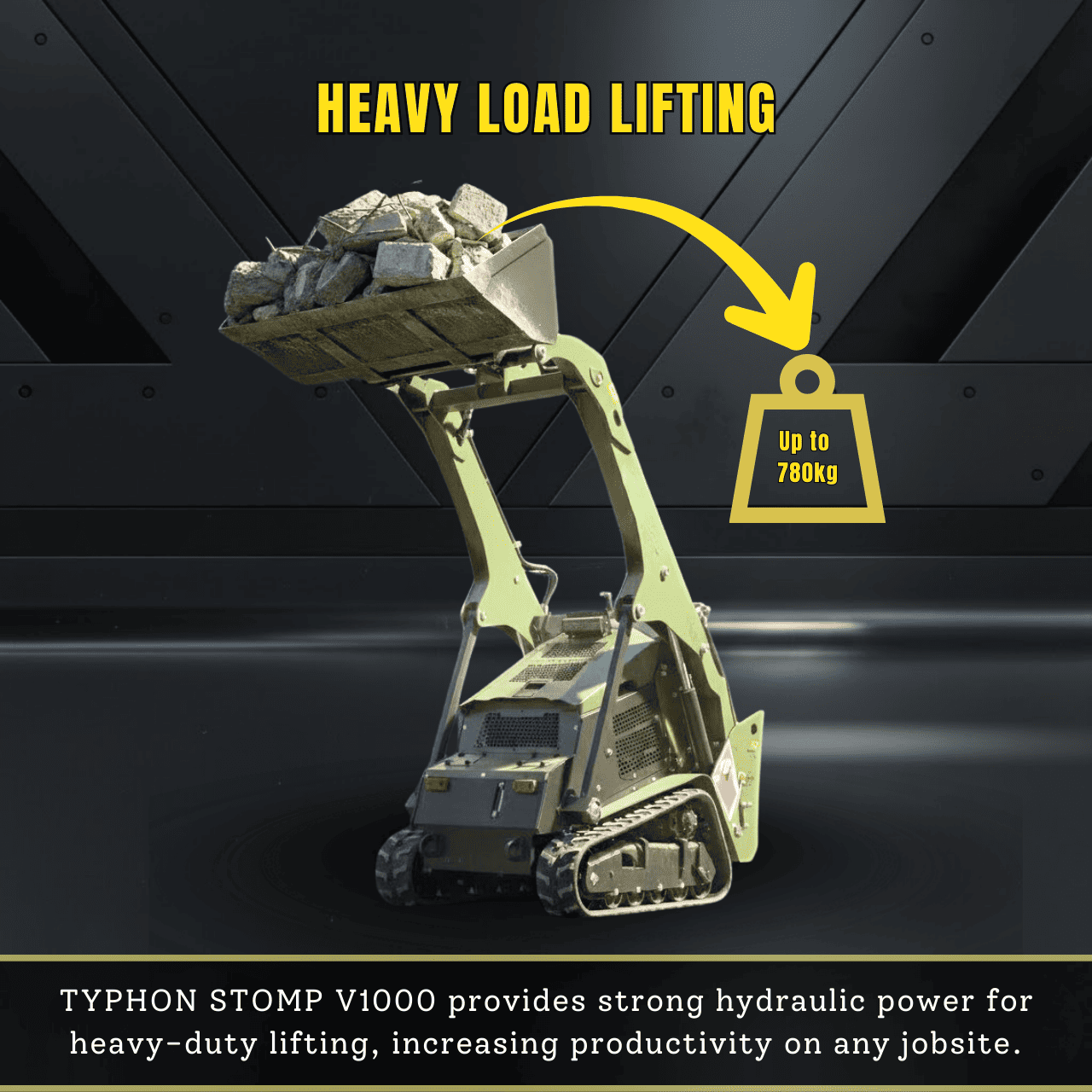

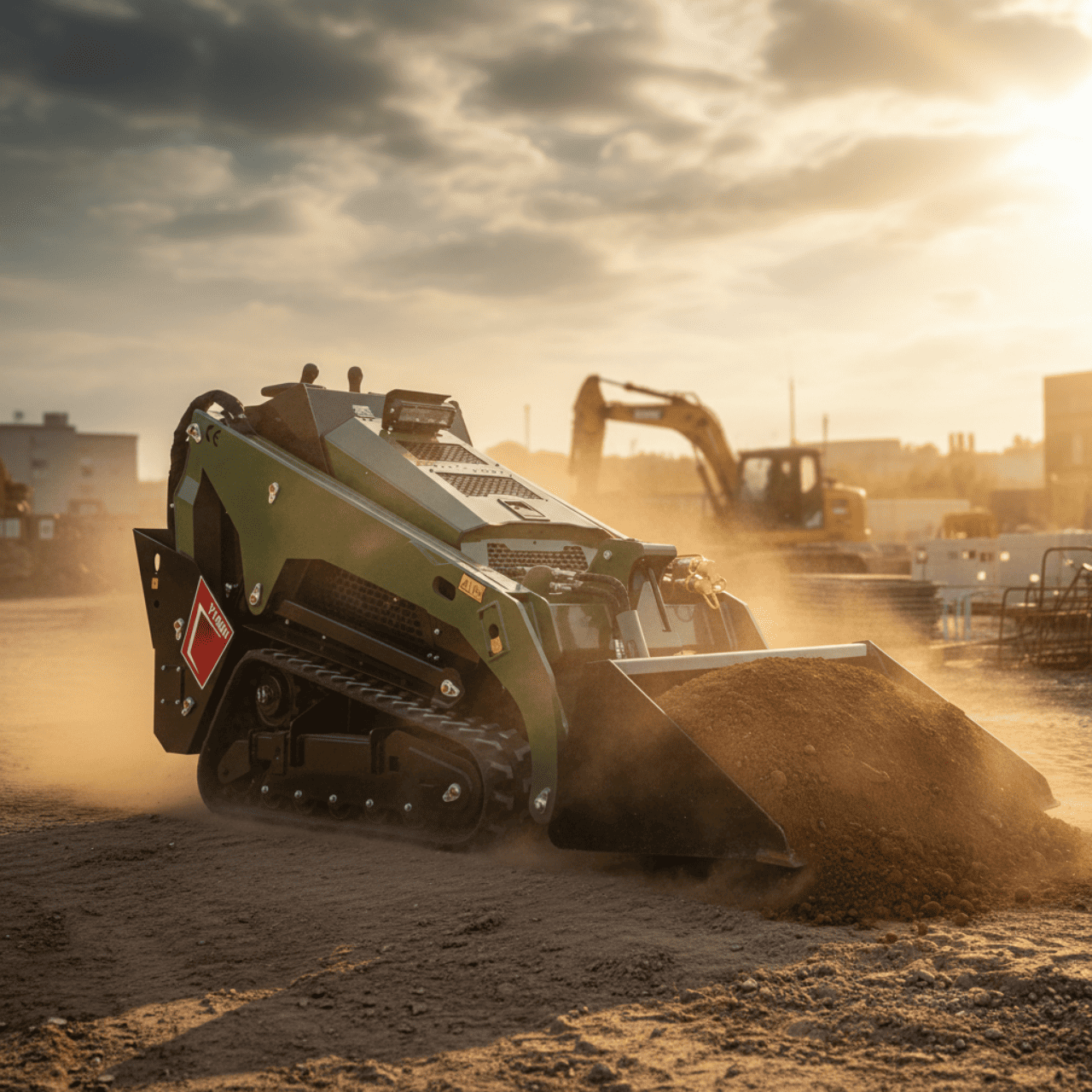

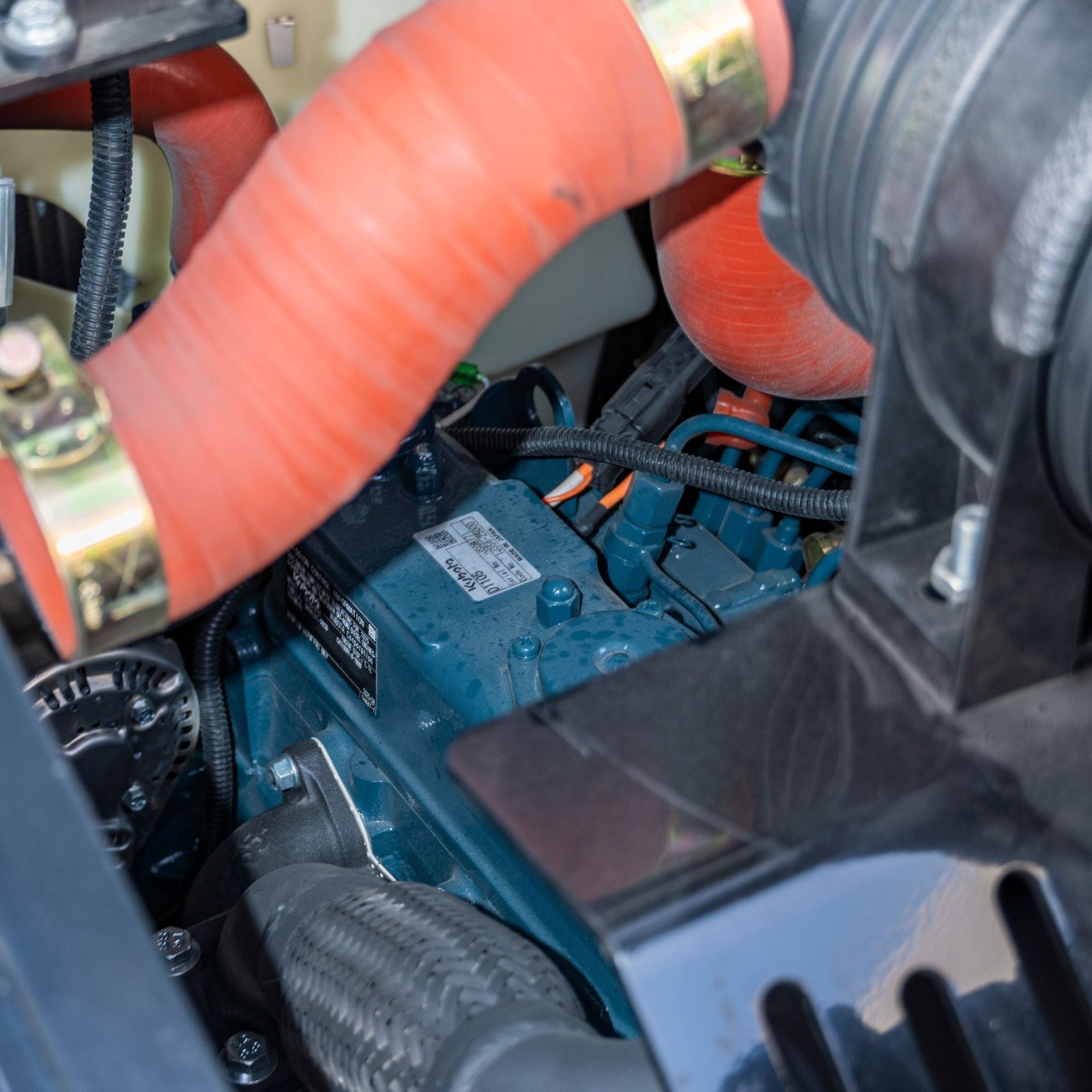

It digs dirt, sand, and gravel, lifts and transports loads up to 1,720 lbs (780 kg rated operating capacity), levels and clears ground; drills holes, breaks through hard surfaces, and efficiently loads or unloads trucks and containers.With quick-swap attachments and an auxiliary hydraulic flow of 33–48 L/min, the machine supports a wide range of hydraulic tools including augers, breakers, grapples, trenchers, and sweepers. Its load-sensing hydraulic system gives operators a way to perform simultaneous operation of the boom and attachments, reducing cycle time and increasing job productivity by eliminating unnecessary interruptions.3. Compact and PowerfulDesigned to deliver strong performance in a compact package, the STOMP V1000 is powered by a Kubota D1105-E4 diesel engine producing 18.2 kW (24.4 hp) at 3,000 rpm; this 3-cylinder, water-cooled, 4-cycle engine meets EU Stage V / EPA Tier 4 Final emissions standards, combining power, fuel efficiency, and proven long-term reliability, while its 4.5 km/h travel speed ensures smooth, efficient movement across job sites with excellent control and stability, making it a practical choice for both tight spaces and demanding jobsite tasks environments.With 18 MPa jobsite tasksing pressure, and a load-sensing hydraulic system, the machine delivers stable, continuous power with minimal energy loss, even during heavy-load or long-duration operations.

Its 1,500 kg operating weight and reinforced structure provide excellent stability and resistance to deformation during lifting, excavation, and loading tasks. A 20 L diesel fuel tank and 22 L hydraulic oil tank support extended jobsite tasksdays with reduced refueling downtime.4. Comfortable ControlsThe.

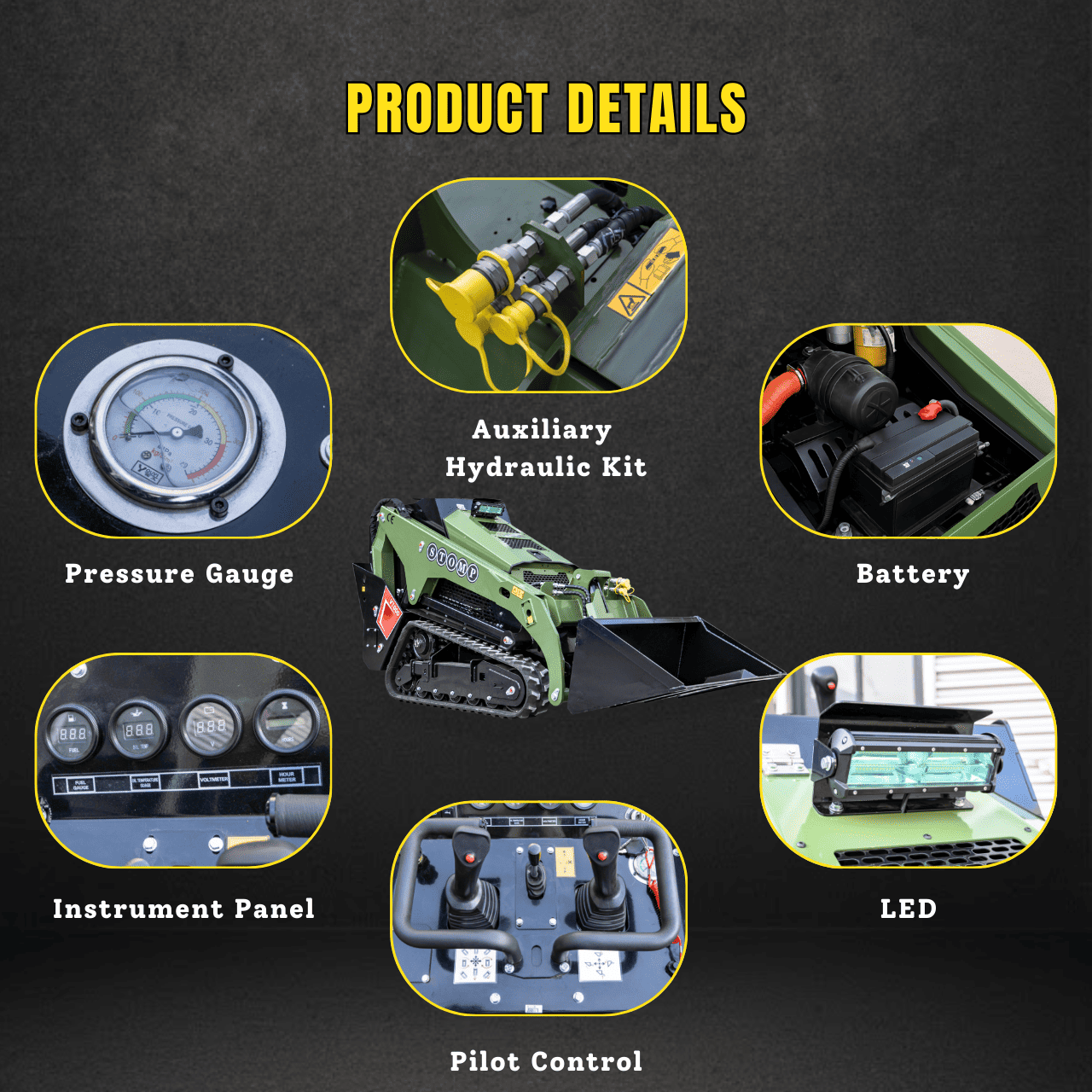

Core Features and Technical Details

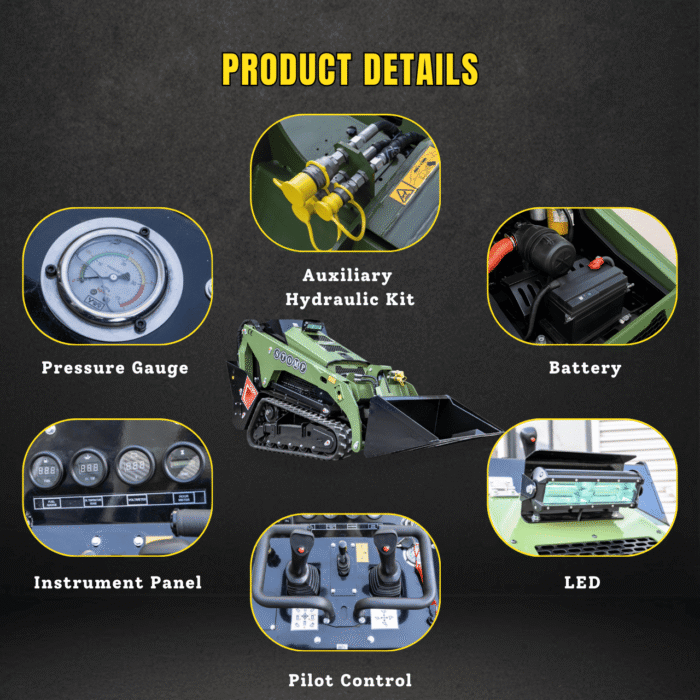

• Kubota Diesel Engine – Proven reliability, strong torque, fuel efficiency, and low-emission compliance

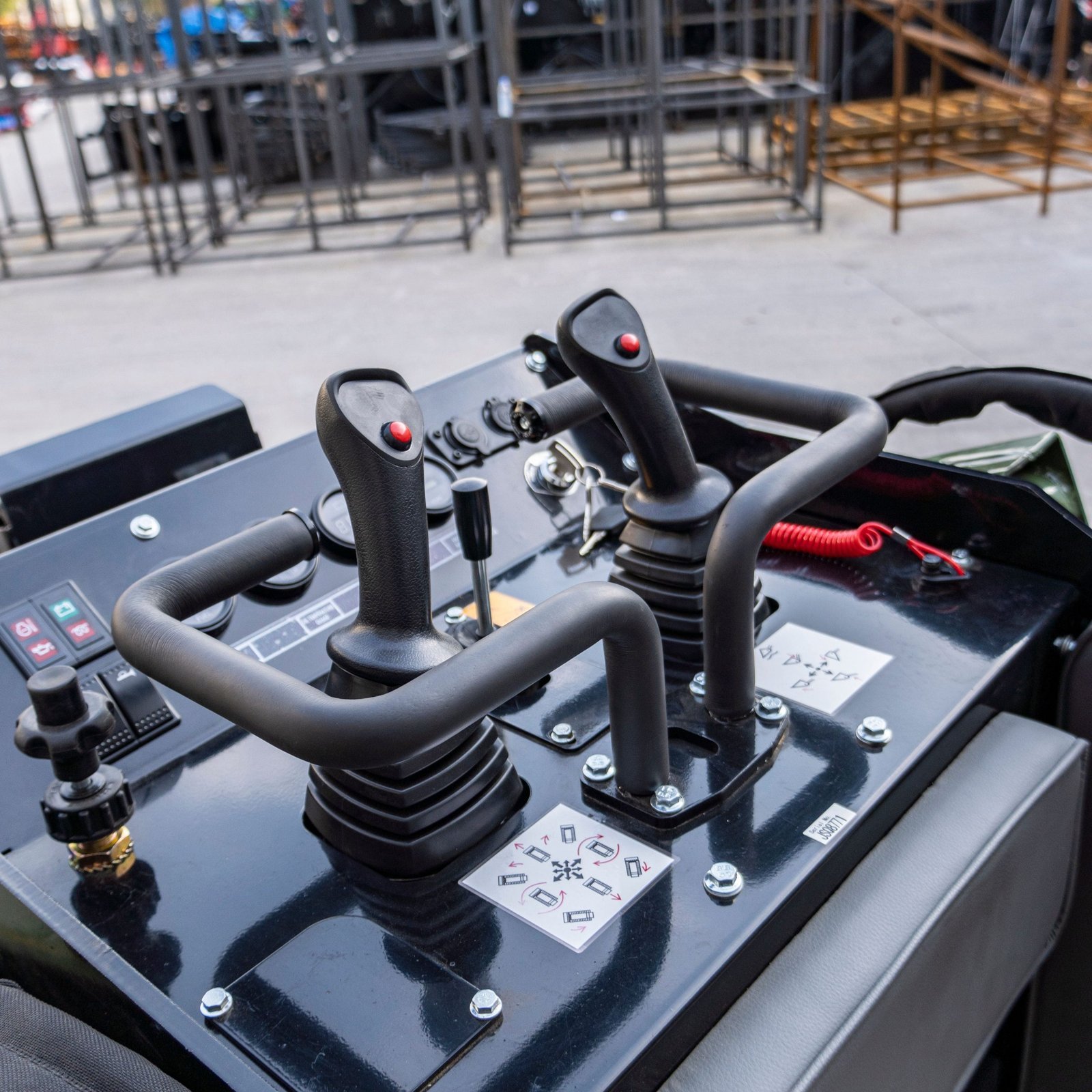

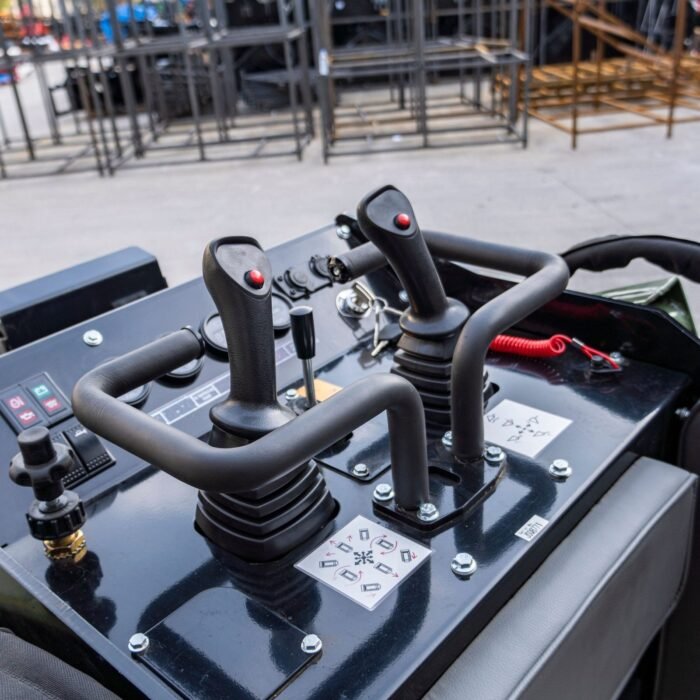

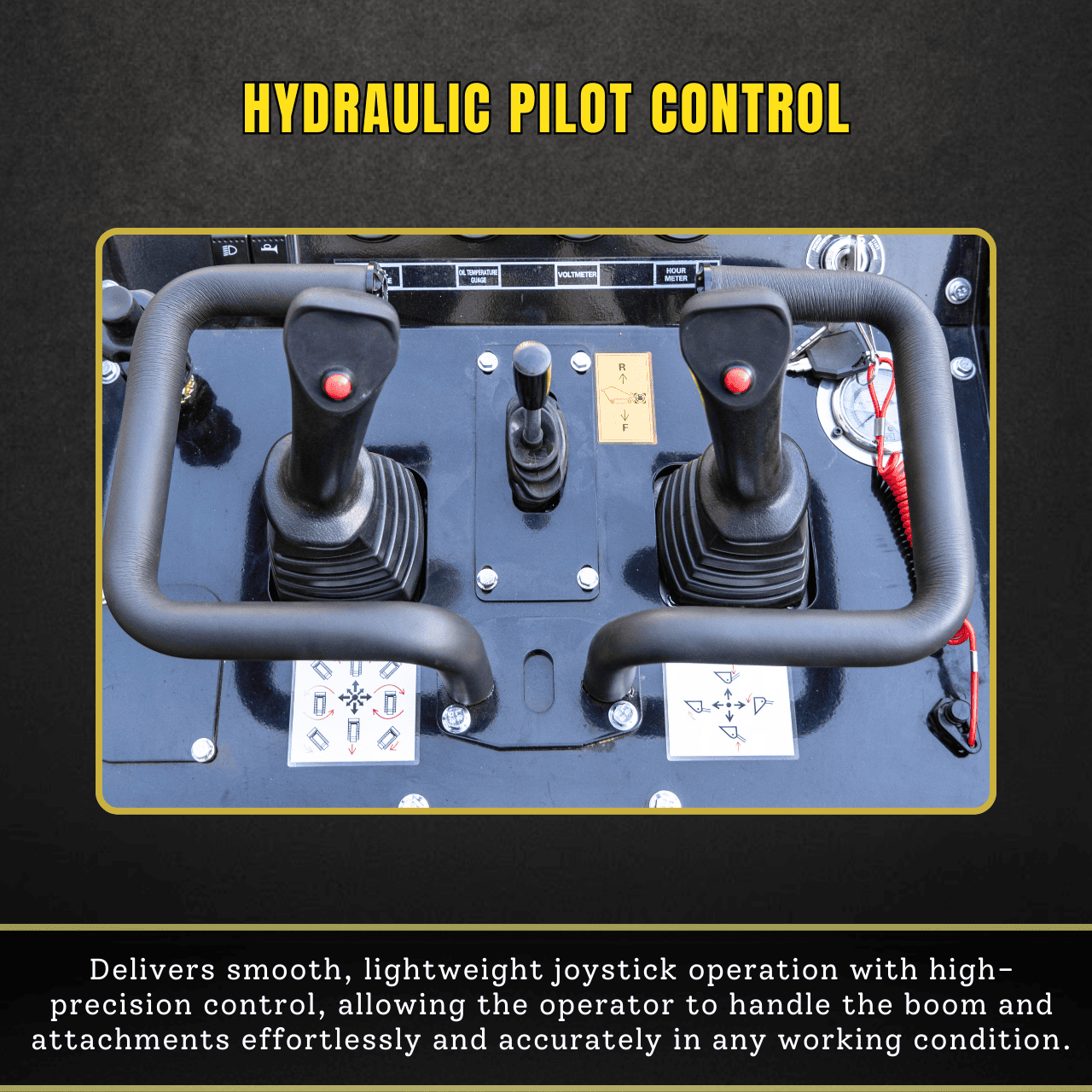

• Full Hydraulic Pilot Control System – Smooth, precise operation with reduced operator fatigue

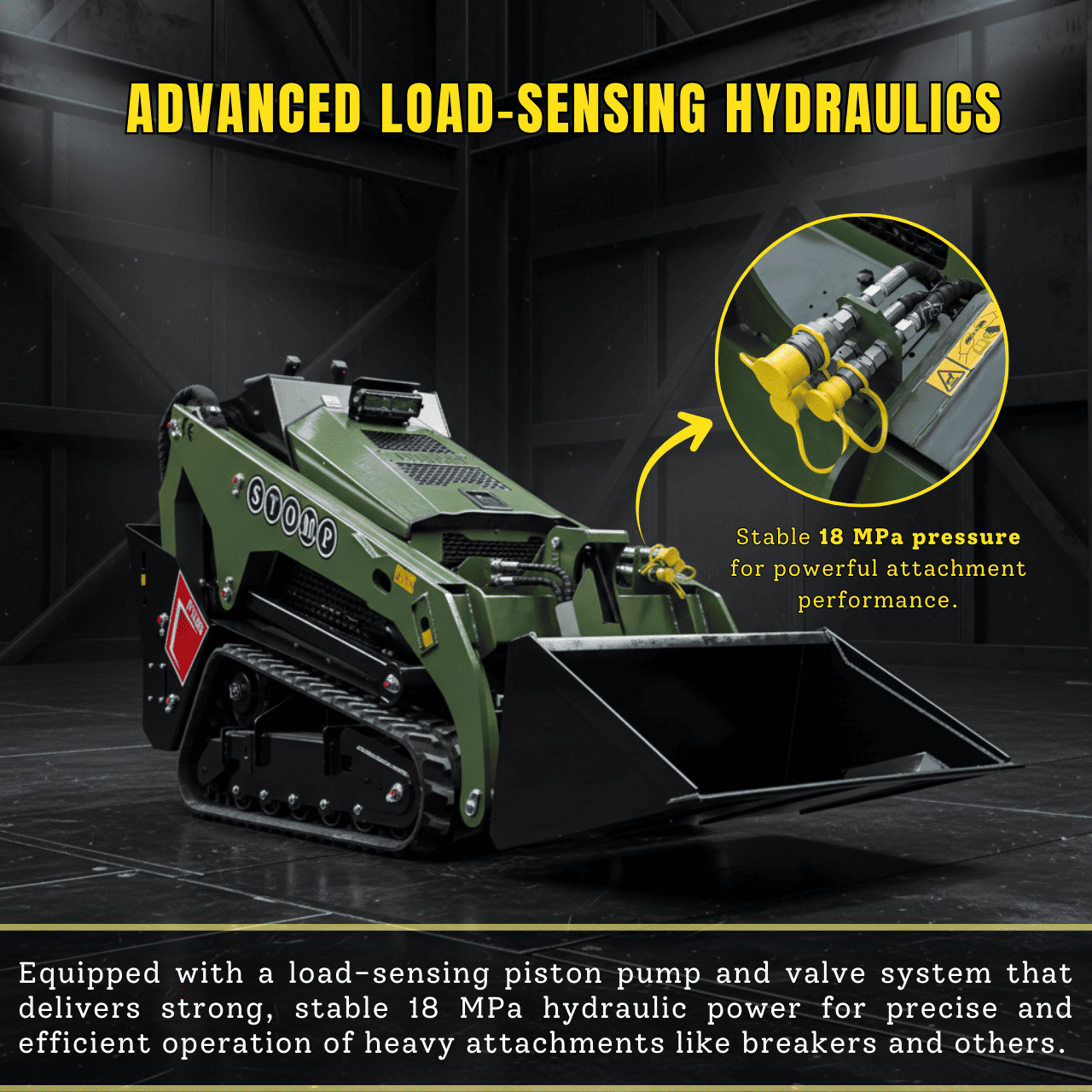

• TIMING load-sensing piston pump and Load-sensing control valve group – Efficient power delivery with fast response and minimal energy loss
• Simultaneous Boom & Attachment Operation – Enables uninterrupted lifting, digging, and loading for higher productivity

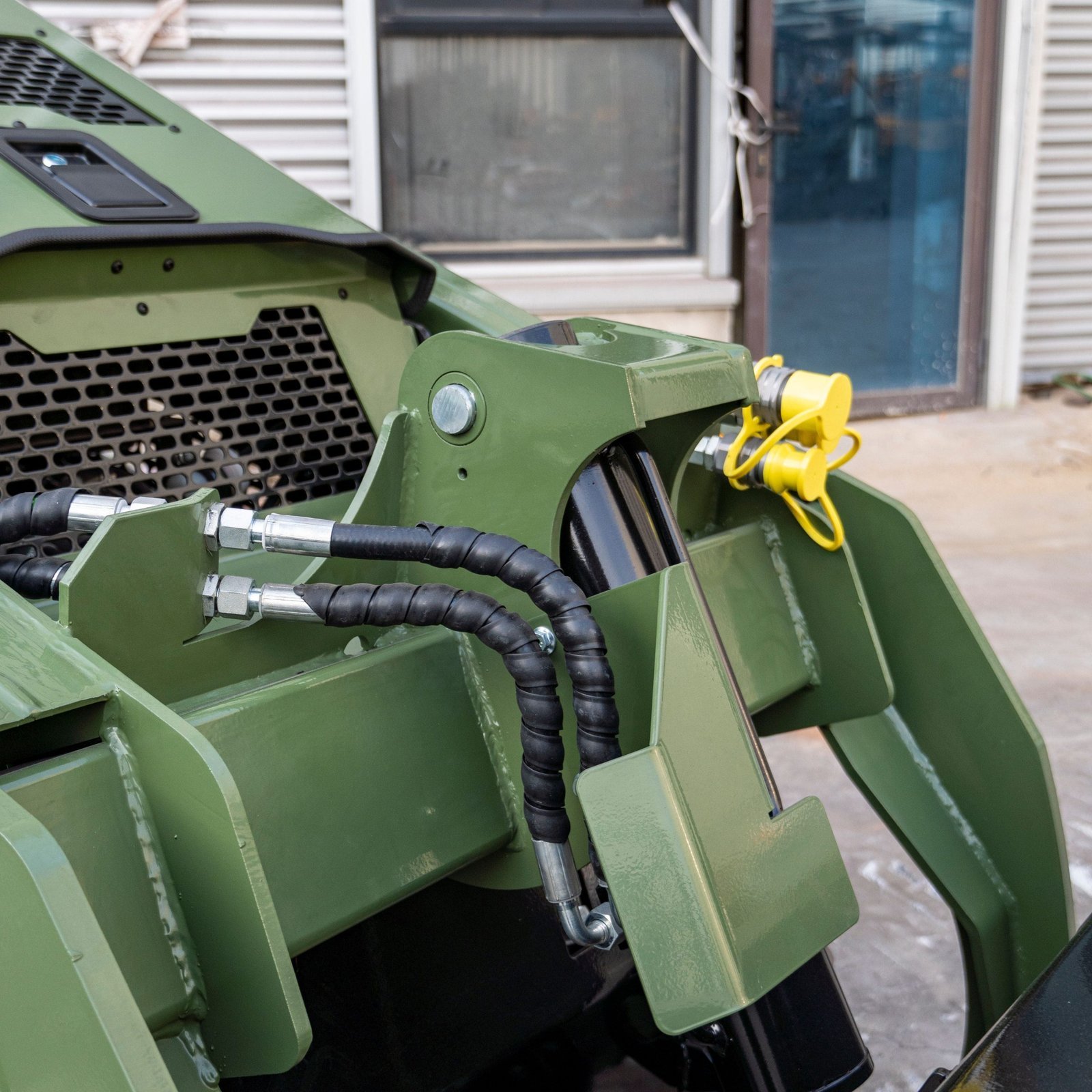

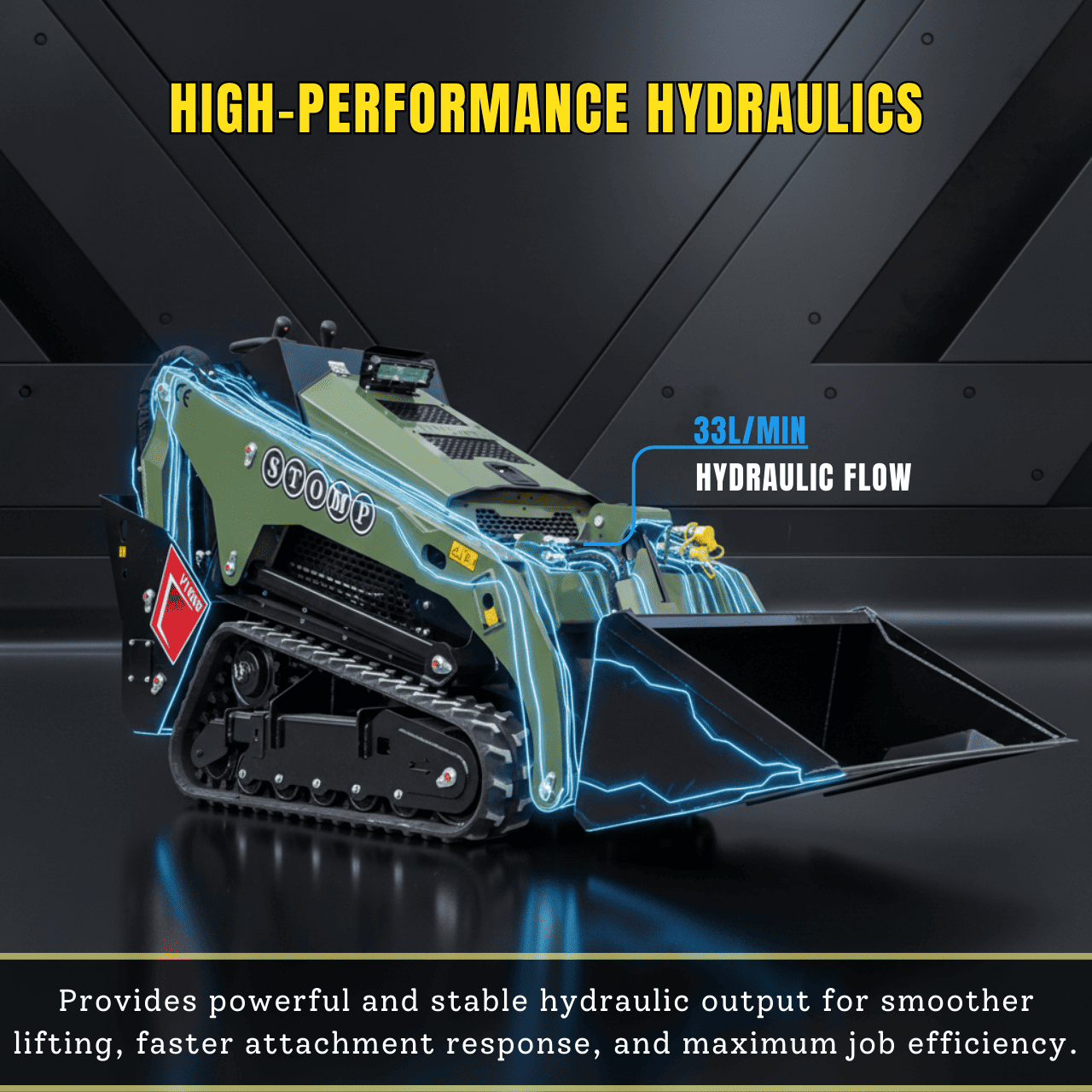

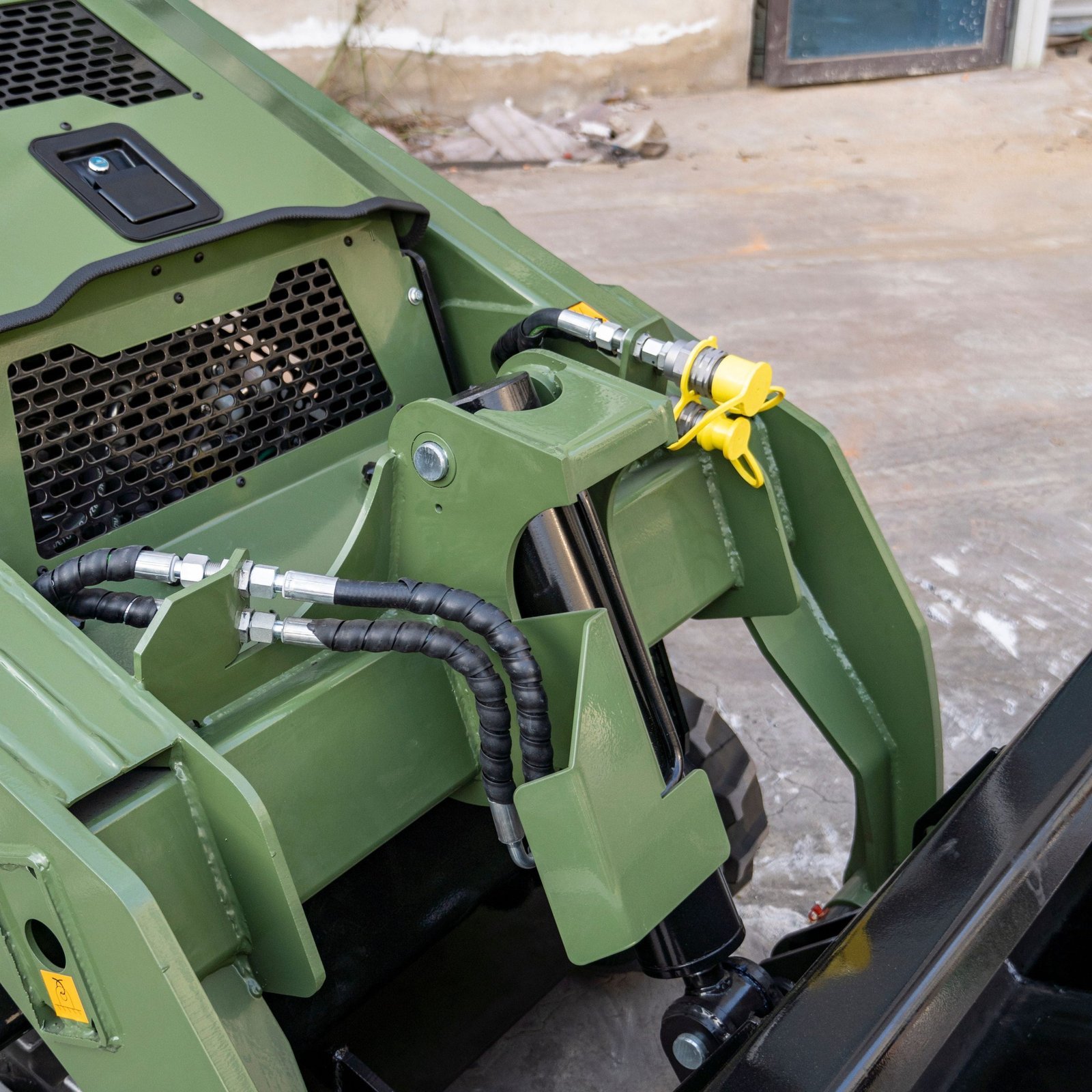

• Auxiliary Hydraulic Flow (33–48 L/min) – Compatible with augers, breakers, grapples, trenchers, sweepers, and more
• High-Strength Structural Frame – Reinforced construction for excellent load stability and long service life

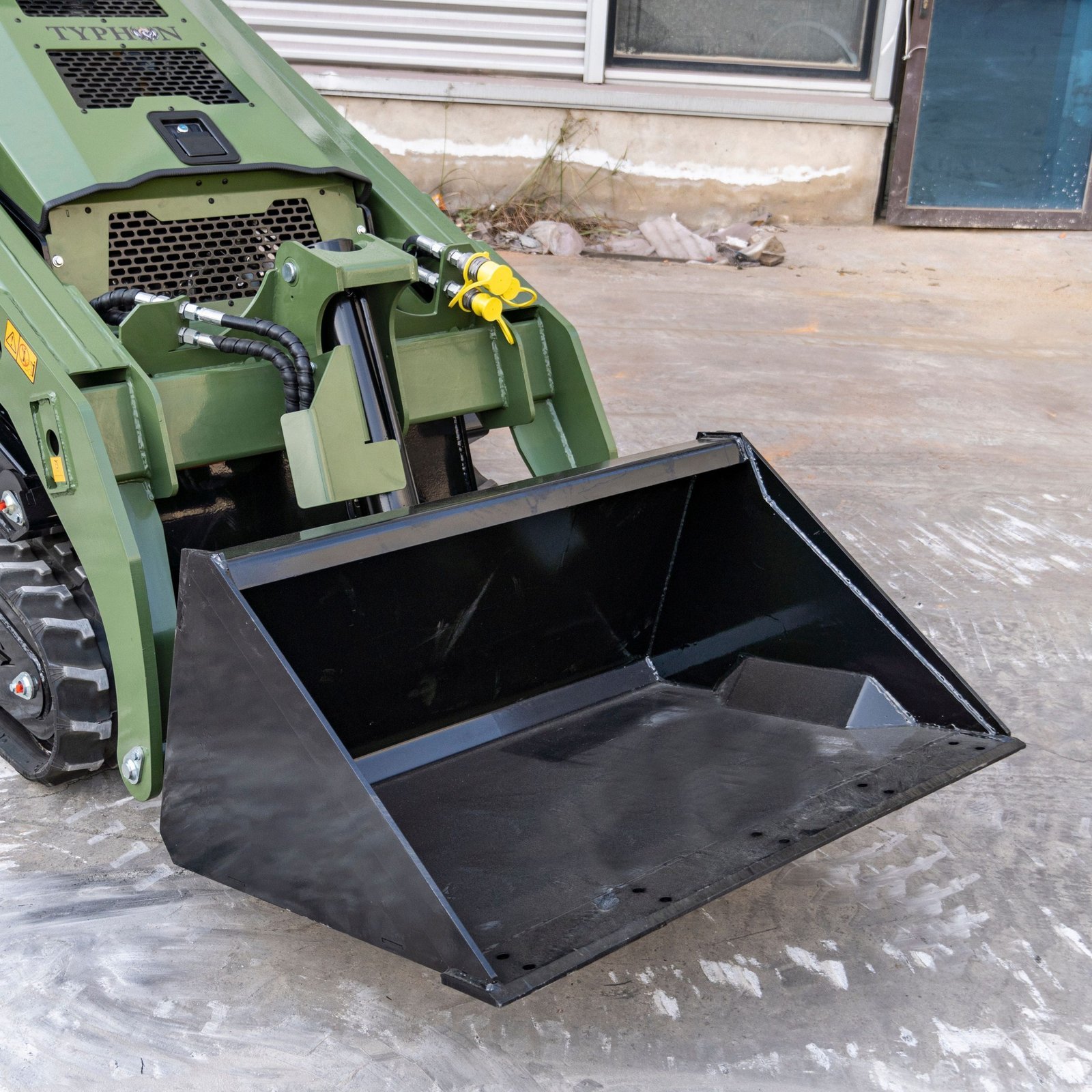

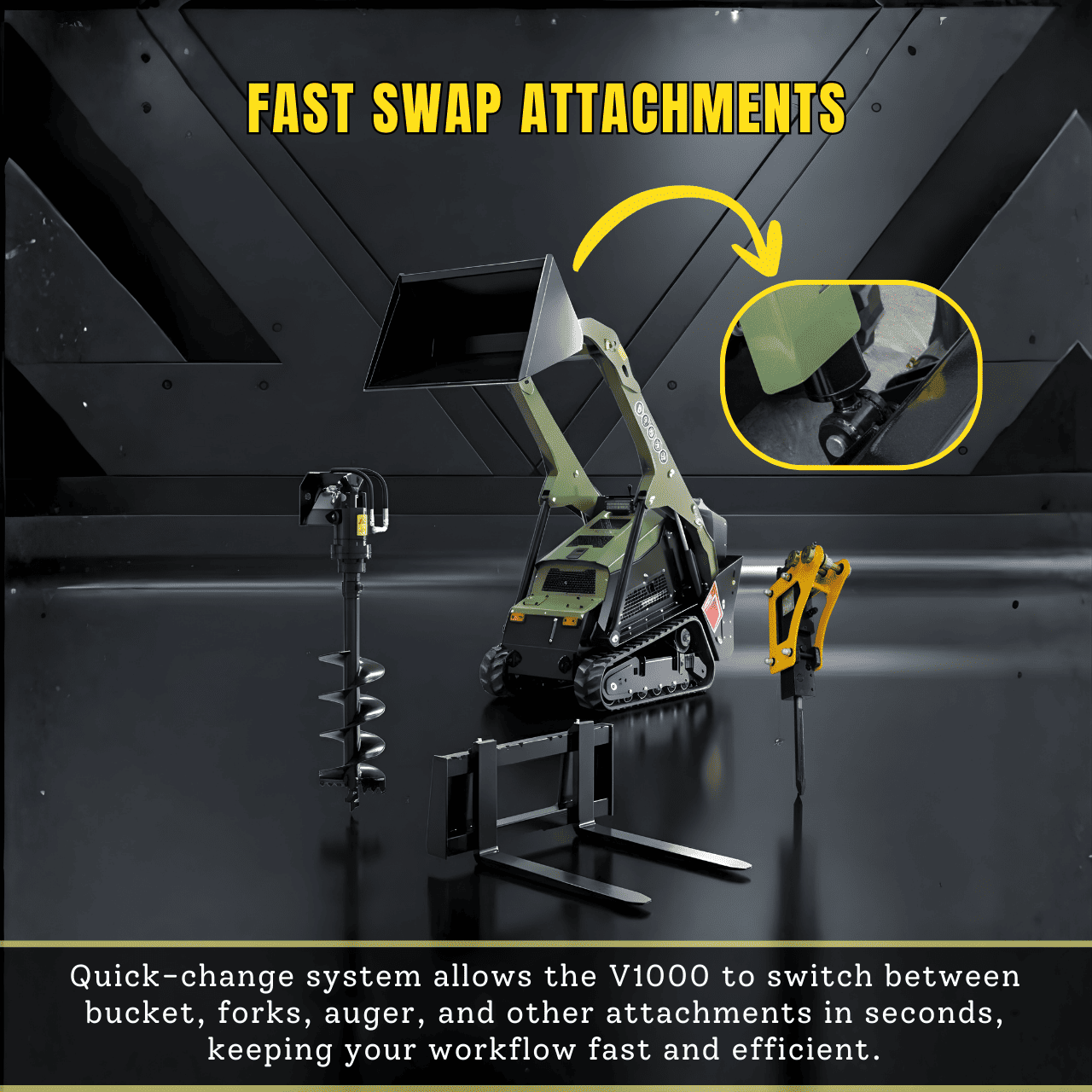

• Quick-Swap Attachment Interface – Fast tool changes to minimize downtime and improve job efficiency

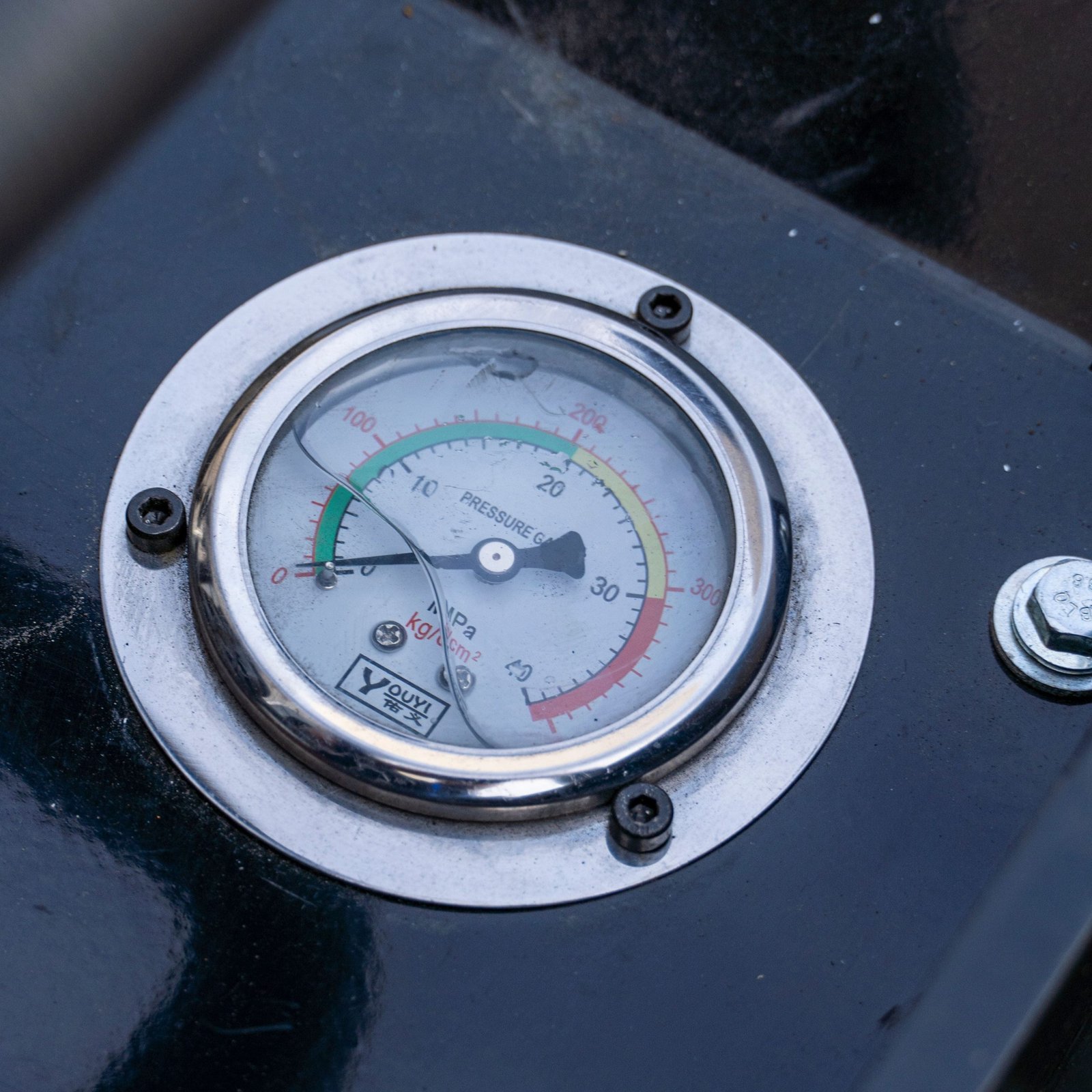

• Clear Instrument Panel – Displays fuel level, oil temperature, voltage, and hour meter for easy monitoring

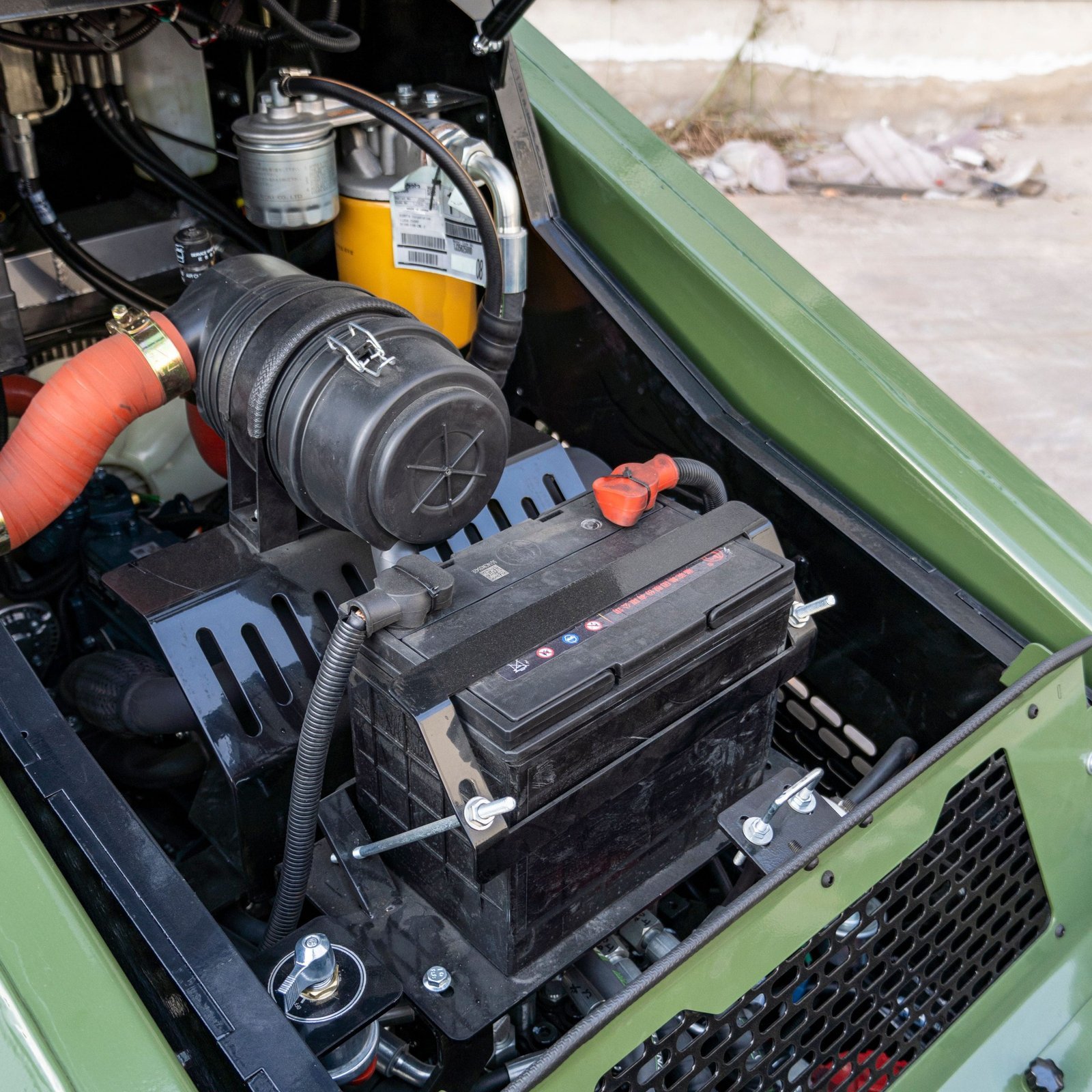

• Heavy-Duty Electrical & Battery System – Reliable starting and stable performance in all working conditions

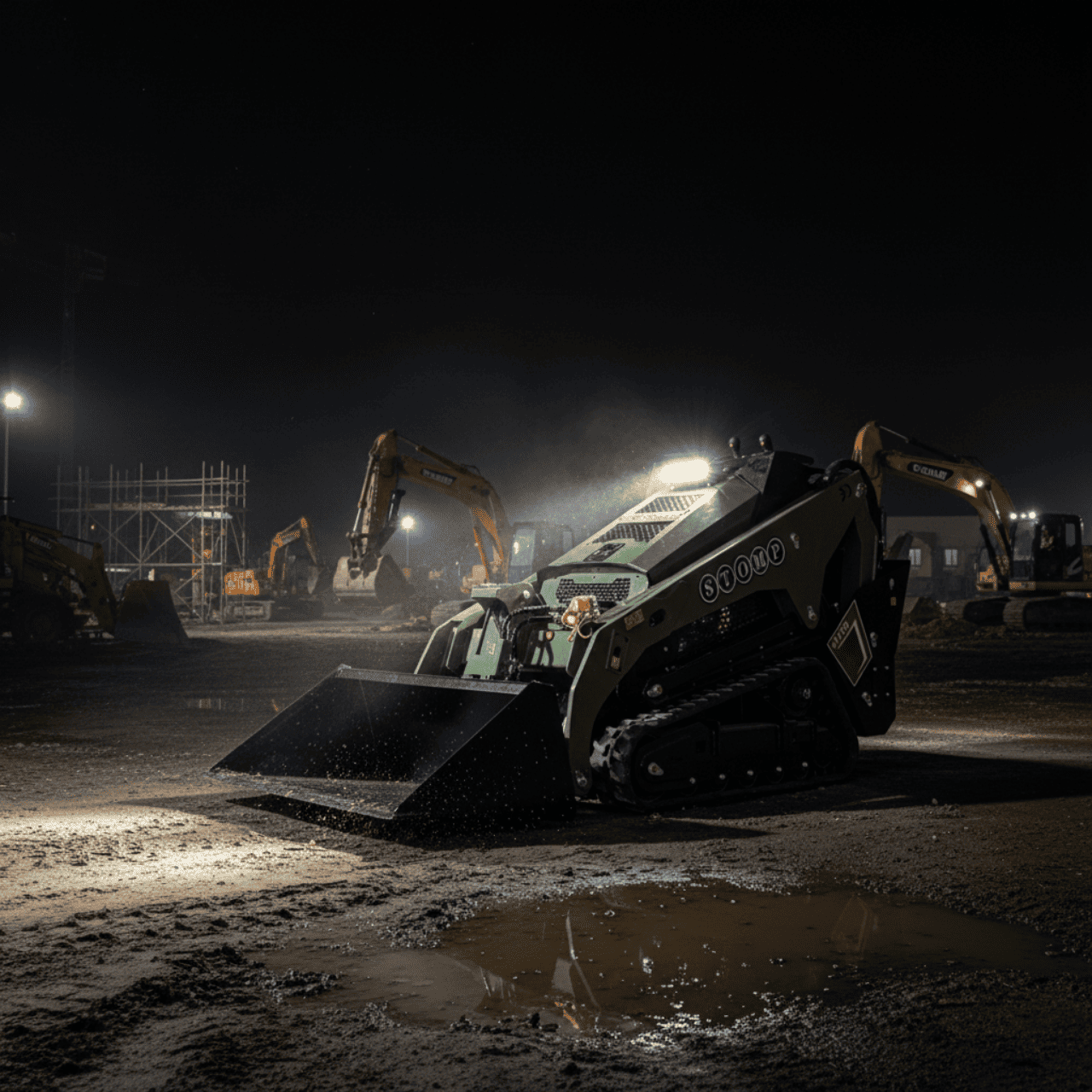

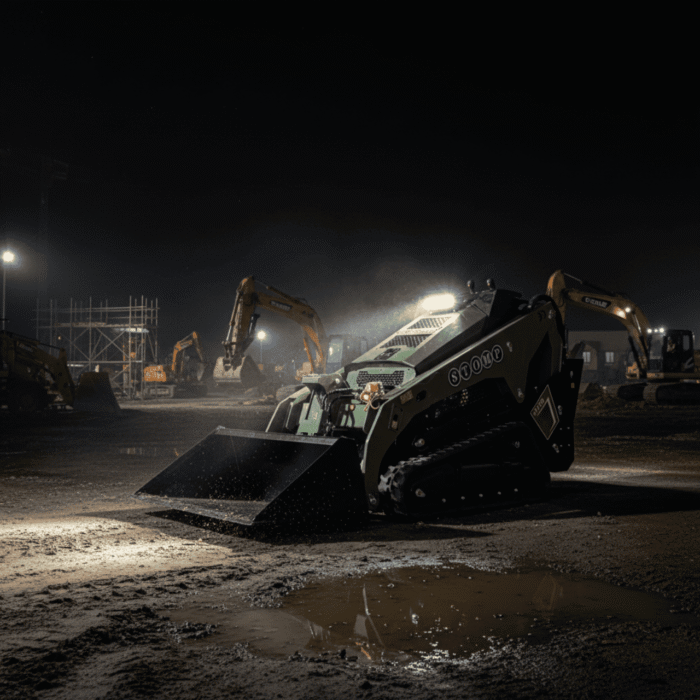

• Bright LED Work Lights – Ensures safe operation in low-light, night, or poor weather environmentsEasy
• Maintenance Design – Well-arranged service points reduce downtime and long-term operating costs

Compatibility and Planning Notes

Verify the current configuration, operating capacity, dimensions, included jobsite tasks equipment, attachment compatibility, shipping, and availability with the sales team prior to ordering.
