1000mm Pallet Fork & Hay Frame Attachment for TYPHON STOMP X1300 & STOMP 509 Mini Skid Steers

Equipment Overview and Capabilities

This independent overview explains the main capabilities, practical uses, and important specifications of 1000mm Pallet Fork & Hay Frame Attachment for TYPHON STOMP X1300 & STOMP 509 Mini Skid Steers for buyers comparing equipment for active jobsites.

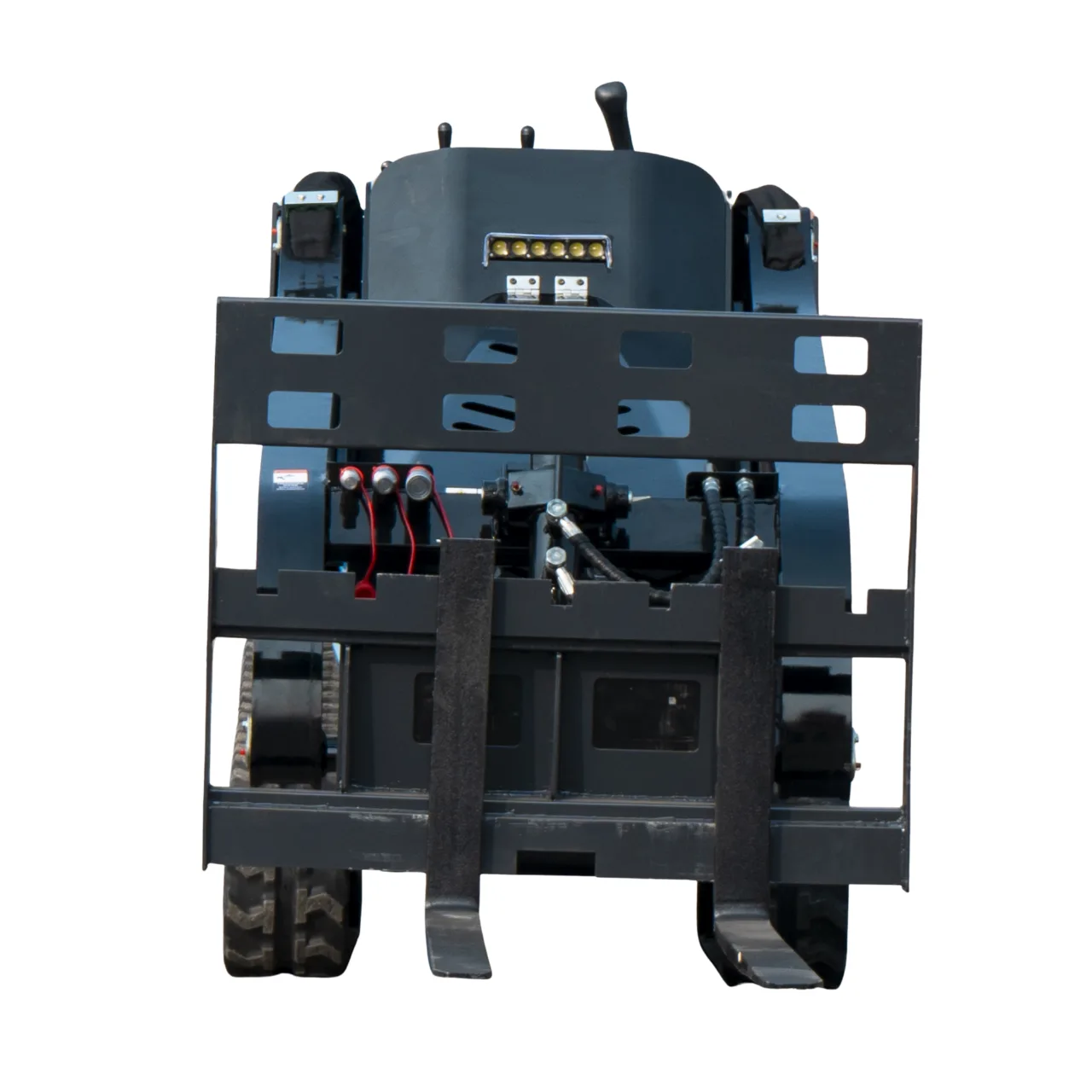

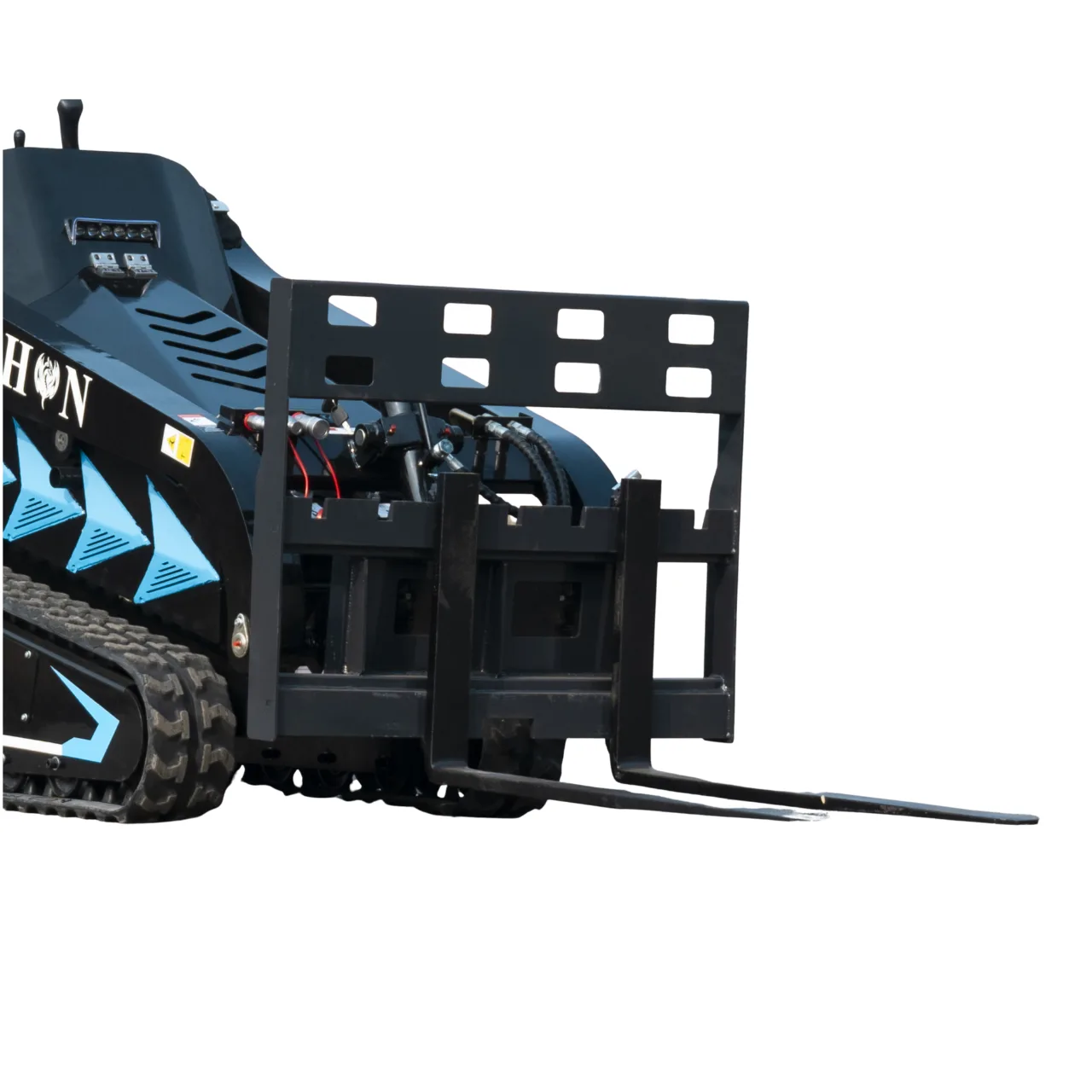

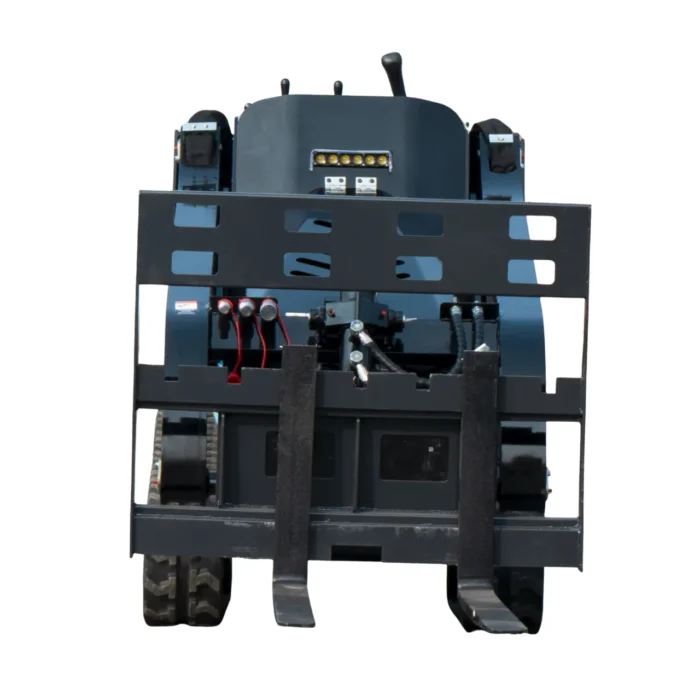

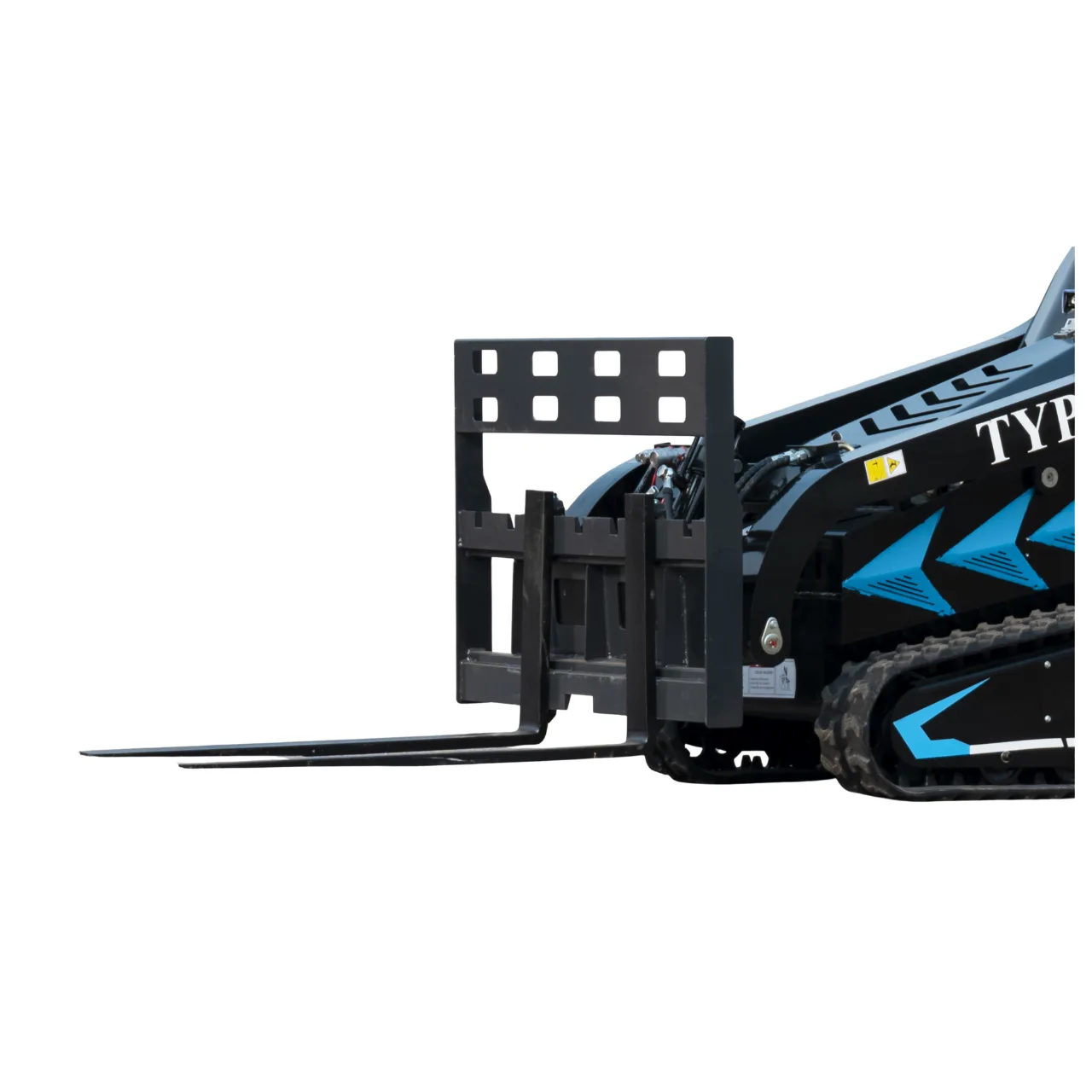

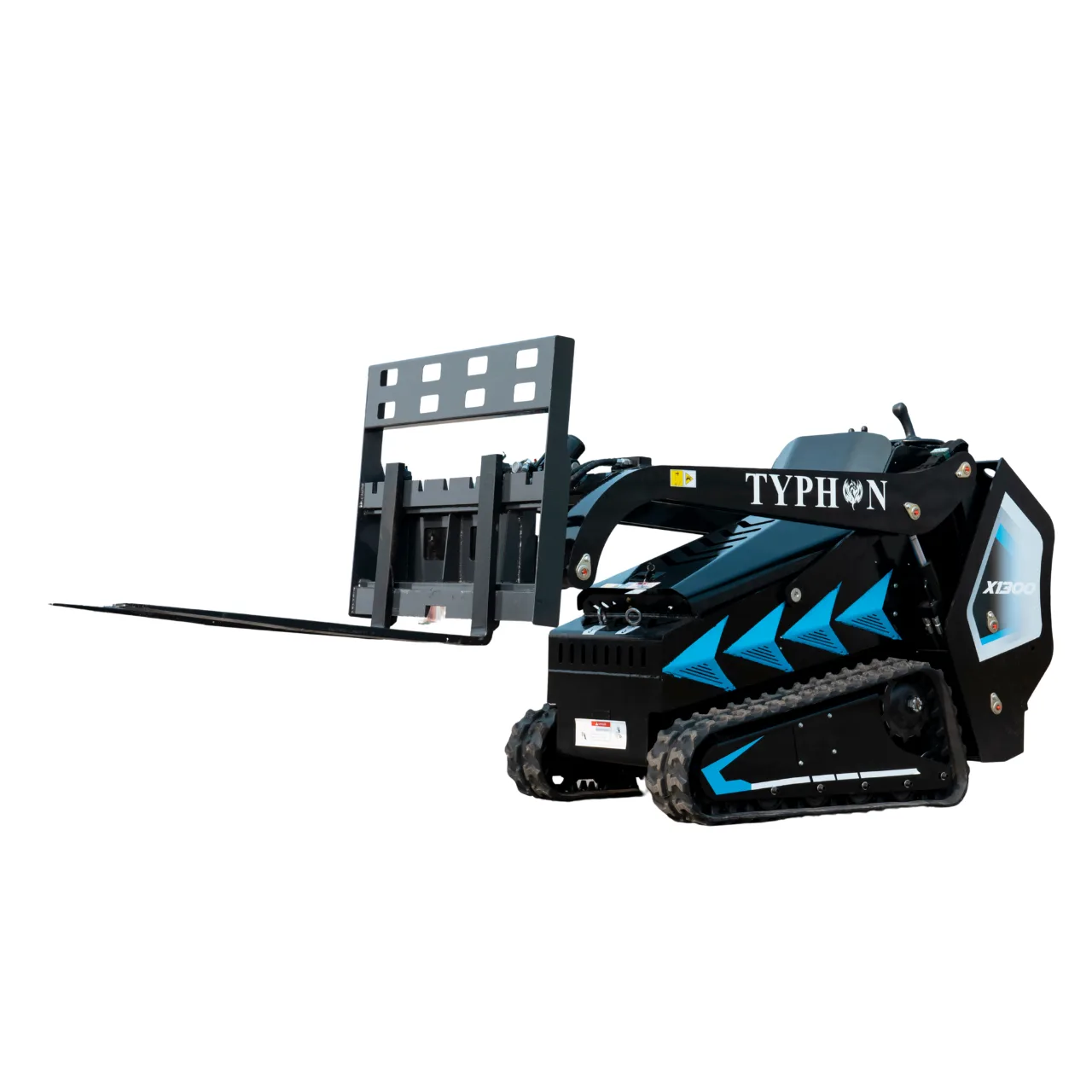

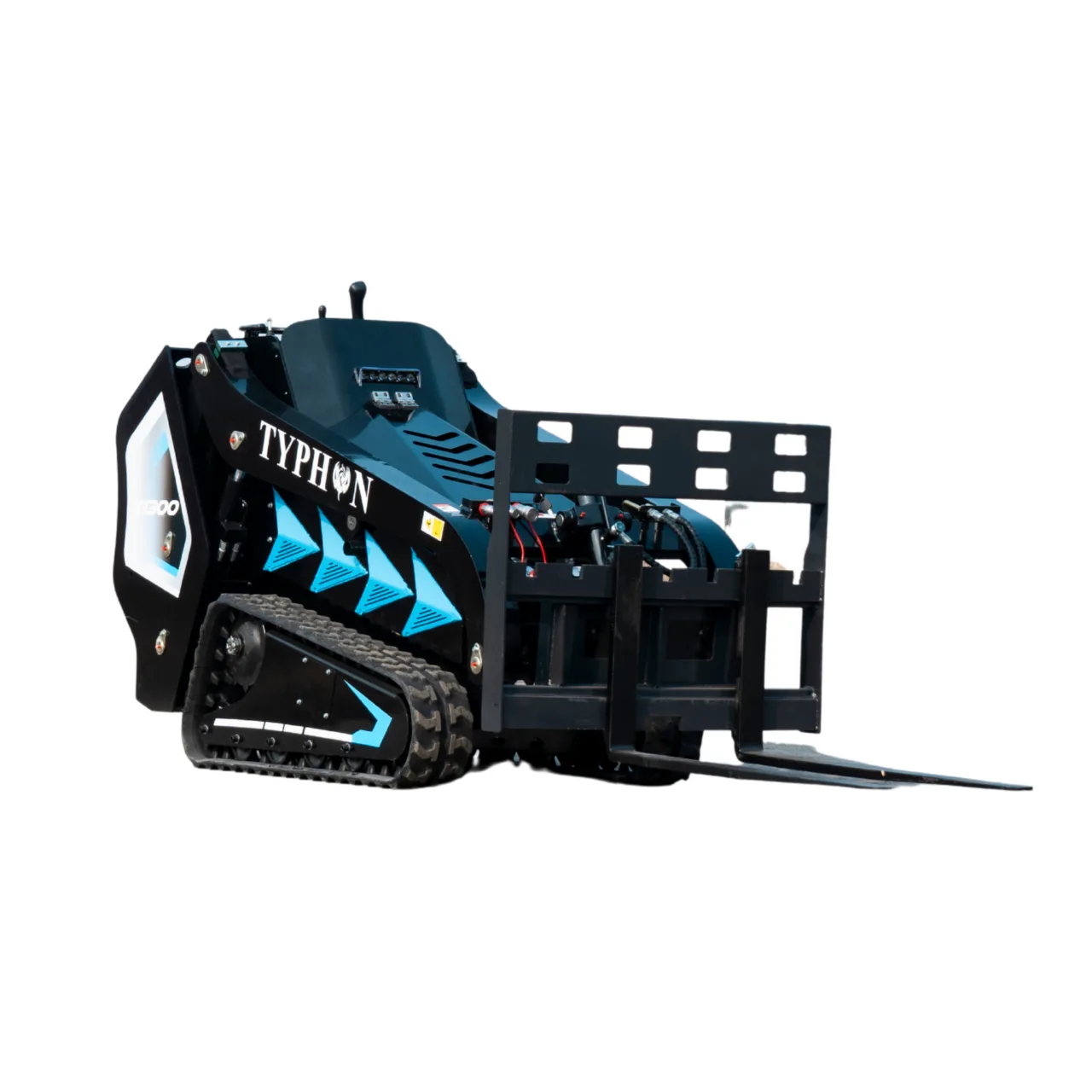

Enhance the versatility of your mini skid steer with this 1000mm Pallet Fork & Hay Frame Attachment, designed specifically for TYPHON STOMP X1300 and TYPHON STOMP 509.This dual-purpose attachment combines pallet fork functionality with a hay bale handling frame, making it a practical choice for agricultural, construction, and general material handling applications. The slotted carriage bar accommodates Class 2 pallet fork blades, while integrated Conus 2 sleeves allow for easy installation of hay bale spears and stabilizers.The heavy-duty open frame construction delivers strength without obstructing visibility, ensuring precise load placement. A reinforced, see-through headache rack adds durability and improves load stability during lifting operations.Key Features:Dual-purpose design: pallet fork and hay bale frameSlotted carriage bar for Class 2 pallet fork bladesConus 2 sleeves for hay bale spears and stabilizersHeavy-duty open frame for strength and clear visibilityReinforced see-through headache rack for added durabilityDeveloped for STOMP X1300 & STOMP 509 mini skid steersSpecifications:Fork Weight: 91 kgFork Dimensions (L × W × H): 1250 × 850 × 230 mmFork Length: 1000 mmThis pallet fork and hay frame attachment is a practical, multi-functional solution for farms, construction sites, warehouses, and property maintenance—delivering reliable lifting performance with compact equipment.⚠️ Compatibility Responsibility NoticeThe listed measurements and diagram apply only to the attachment’s quick-mounting plate.

It is the buyer’s responsibility to confirm these dimensions match their machine’s mounting system. We cannot guarantee fitment on machines with different mount designs.

Core Features and Technical Details

• Dual-purpose design: pallet fork and hay bale frame
• Slotted carriage bar for Class 2 pallet fork blades
• Conus 2 sleeves for hay bale spears and stabilizers
• Heavy-duty open frame for strength and clear visibility
• Reinforced see-through headache rack for added durability
• Designed for STOMP X1300 & STOMP 509 mini skid steers
• Fork Weight: 91 kg
• Fork Dimensions (L × W × H): 1250 × 850 × 230 mm
• Fork Length: 1000 mm

Compatibility and Planning Notes

Before ordering, verify the host machine model, mounting dimensions, hydraulic flow and pressure requirements, attachment weight, and rated operating capacity. Use the attachment only within the limits stated for the carrier machine and the selected jobsite tasksing height.
